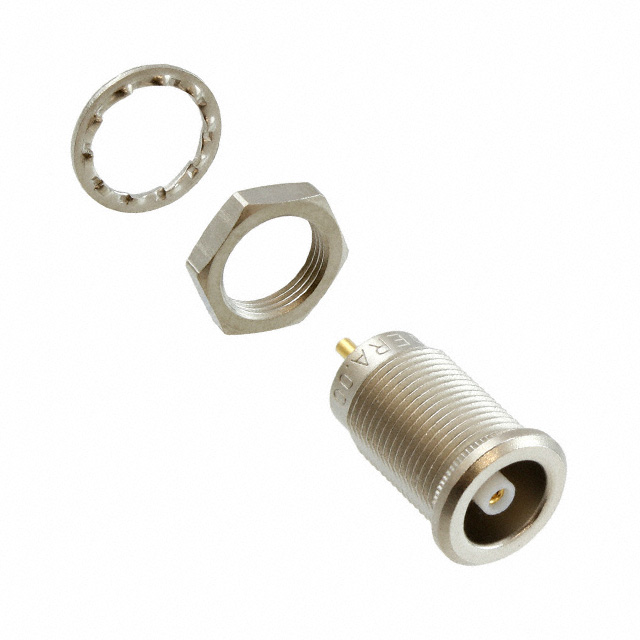

ERA.00.250.CTL

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS COAX SLDR CHRM SHELL FEMALE PANL RECEPT

Search across all available documentation for this part.

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS COAX SLDR CHRM SHELL FEMALE PANL RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.00.250.CTL

Body Finish	Chrome
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50
Mating Cycles	5000
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

Part	Dielectric Material	Housing Color	Center Contact Material	Fastening Type	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Contact Termination	Ingress Protection	Voltage Rating	Number of Ports	Impedance	Connector Style	Shield Termination	Includes	Connector Type	Mounting Feature	Center Contact Plating
LEMO ERA.00.250.CTL	Polytetrafluoroethylene (PTFE)	Silver	Bronze	Push-Pull	Brass	Chrome	-55 °C	260 ░C	5000	Solder Cup	IP50	700 VDC	1	50 Ohms	NIM-CAMAC CD/N 549	Solder	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	Bulkhead - Rear Side Nut	Gold
LEMO ERA.00.250.NTL	Polytetrafluoroethylene (PTFE)	Silver	Bronze	Push-Pull	Brass	Nickel	-55 °C	260 ░C	5000	Solder Cup	IP50	700 VDC	1	50 Ohms	NIM-CAMAC CD/N 549	Solder	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	Bulkhead - Rear Side Nut	Gold
LEMO ERA.00.250.NLL	Polyetheretherketone (PEEK)	Silver	Bronze	Push-Pull	Brass	Nickel	-55 °C	260 ░C	5000	Solder Cup	IP50	700 VDC		50 Ohms	NIM-CAMAC CD/N 549	Solder	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	Bulkhead - Rear Side Nut	Gold
LEMO ERA.00.250.CLL	Polyetheretherketone (PEEK)	Silver	Bronze	Push-Pull	Brass	Chrome	-55 °C	260 ░C	5000	Solder Cup	IP50	700 VDC	1	50 Ohms	NIM-CAMAC CD/N 549	Solder	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	Bulkhead - Rear Side Nut	Gold
LEMO ERA.00.250.DTL	Polytetrafluoroethylene (PTFE)	Gold	Bronze	Push-Pull	Brass	Gold	-55 °C	260 ░C	5000	Solder Cup	IP50	700 VDC	1	50 Ohms	NIM-CAMAC CD/N 549	Solder	1 Connector 1 Lockwasher 1 Nut	Female Socket Receptacle	Bulkhead - Rear Side Nut	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
