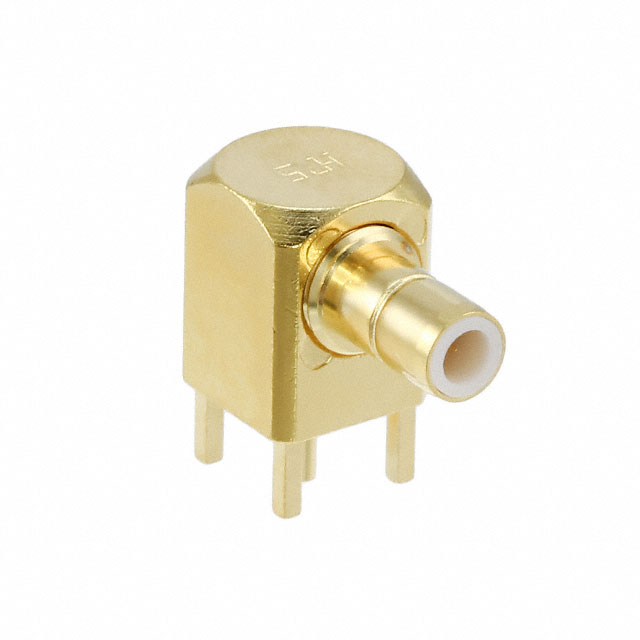

UM-QLR-PC-1(40)

Active

Hirose Electric USA, Inc.

CONN UMC RCPT R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN UMC RCPT R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	UM-QLR-PC-1(40)

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	U.FL (UMCC)
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	1 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Solder

Part	Connector Type	Impedance	Housing Color	Number of Ports	Shield Termination	Dielectric Material	Center Contact Material	Mating Cycles	Connector Style	Mounting Type	Contact Termination	Frequency - Max [Max]	Center Contact Plating	Body Finish	Fastening Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. UM-QLR-PC-1(40)	Male Pin Receptacle	50 Ohms	Gold	1	Solder	Polytetrafluoroethylene (PTFE)	Brass	1000	U.FL (UMCC)	Through Hole Right Angle	Solder	1 GHz	Gold	Gold	Snap-On	Brass	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 26.22

General part information

U.FL (UMCC) Connector Receptacle, Male Pin 50 Ohms Through Hole, Right Angle Solder
