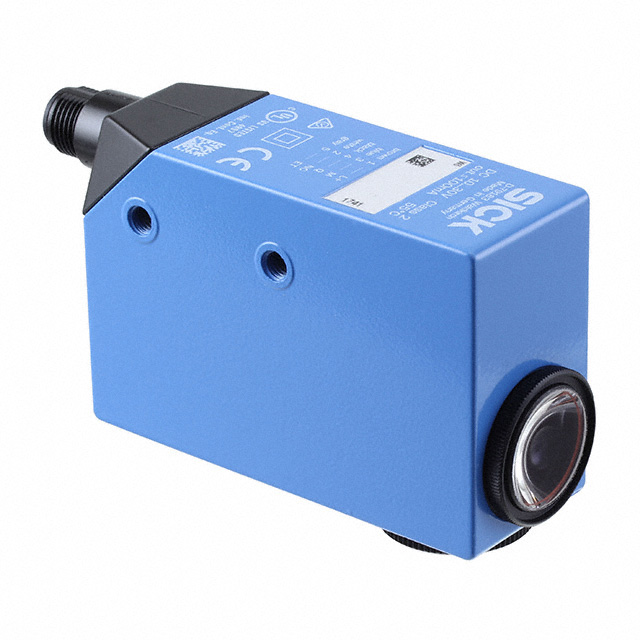

1015981

Obsolete

SICK, Inc.

SENSOR 10MM NPN DO/LO CONT M12

Search across all available documentation for this part.

Obsolete

SICK, Inc.

SENSOR 10MM NPN DO/LO CONT M12

Technical Specifications

Parameters and characteristics for this part

Specification	1015981

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67
Light Source	Green LED
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Response Time	50 µs
Sensing Distance	0.394 in
Sensing Distance	10 mm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Output Configuration	Adjustment Type	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Light Source	Light Source	Connection Method	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
SICK, Inc. 1016999	IP67	PNP	Adjustable	50 µs	30 VDC	10 VDC	0.394 in	10 mm	Green	520 nm	Connector M12
SICK, Inc. 1016628		PNP - Dark-ON/Light-ON - Selectable		50 µs	30 VDC	10 VDC	0.394 in	10 mm	Green LED		5POS Connector M12	55 °C	-10 °C
SICK, Inc. 1022090	IP67	PNP	Adjustable	50 µs	30 VDC	10 VDC	0.394 in	10 mm	Green	520 nm	Connector M12
SICK, Inc. 1015981	IP67			50 µs	30 VDC	10 VDC	0.394 in	10 mm	Green LED		4POS Connector M12	55 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optical Sensor 0.394" (10mm) NPN - Dark-ON/Light-ON - Selectable

Technical documentation and resources
