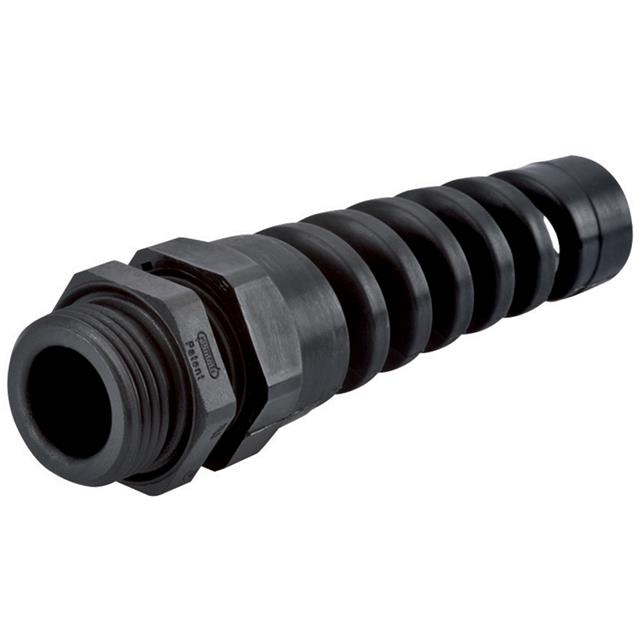

CF11AR-BK

Active

Sealcon

CABLE GLAND 3.05-7.11MM PG11

Search across all available documentation for this part.

Active

Sealcon

CABLE GLAND 3.05-7.11MM PG11

Technical Specifications

Parameters and characteristics for this part

Specification	CF11AR-BK

Color	Black
Ingress Protection	IP69K, IP68, NEMA 6
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.28 in
Outside Cable Diameter (Max) [Max] [diameter]	7.11 mm
Outside Cable Diameter (Min) [diameter]	3.05 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.12 in
Panel Hole Size	18.5 mm
Panel Hole Size	0.73 in
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	PG11
Type	Cable Gland

Part	Ingress Protection	Type	Thread Size	Material	Panel Hole Size	Panel Hole Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [diameter]
Sealcon CF11AR-BK	IP68 IP69K NEMA 6	Cable Gland	PG11	Polyamide (PA66) Nylon 6/6	18.5 mm	0.73 in	Black	0.28 in	7.11 mm	100 °C	-40 °C	7.87 mm	0.31 in	0.12 in	3.05 mm
Sealcon CF11AR-GY	IP68 IP69K NEMA 6	Cable Gland	PG11	Polyamide (PA66) Nylon 6/6	18.5 mm	0.73 in	Gray	0.28 in	7.11 mm	100 °C	-40 °C	7.87 mm	0.31 in	0.12 in	3.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 2.02

General part information

Cable Gland Polyamide (PA66), Nylon 6/6 PG11 Black
