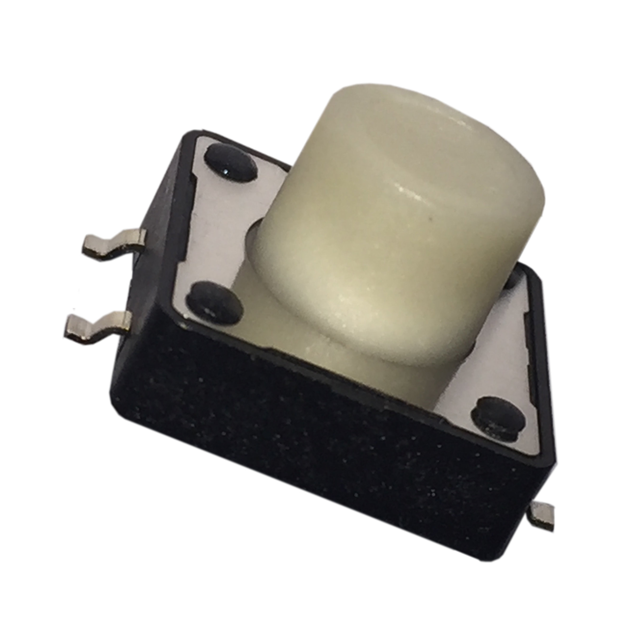

224AMVBBR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	224AMVBBR

Actuator Height off PCB, Vertical	8.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	12 mm
Outline [y]	12 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	Gull Wing

Part	Actuator Type	Switch Travel [custom]	Actuator Height off PCB, Vertical	Illumination	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Contact Rating @ Voltage	Switch Function	Termination Style	Mounting Type	Mechanical Life	Outline [y]	Outline [x]	Operating Force
Tusonix a Subsidiary of CTS Electronic Components 224AMVBAR	Standard	0.3 mm	8.5 mm	Non-Illuminated	SPST-NO	85 °C	-40 °C	Top Actuated	0.05 A 12 VDC	Off-Mom	Gull Wing	Surface Mount	500000 Cycles	12 mm	12 mm
Tusonix a Subsidiary of CTS Electronic Components 224AMVBBR	Standard	0.3 mm	8.5 mm	Non-Illuminated	SPST-NO	85 °C	-40 °C	Top Actuated	0.05 A 12 VDC	Off-Mom	Gull Wing	Surface Mount	300000 Cycles	12 mm	12 mm	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 0.19

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
