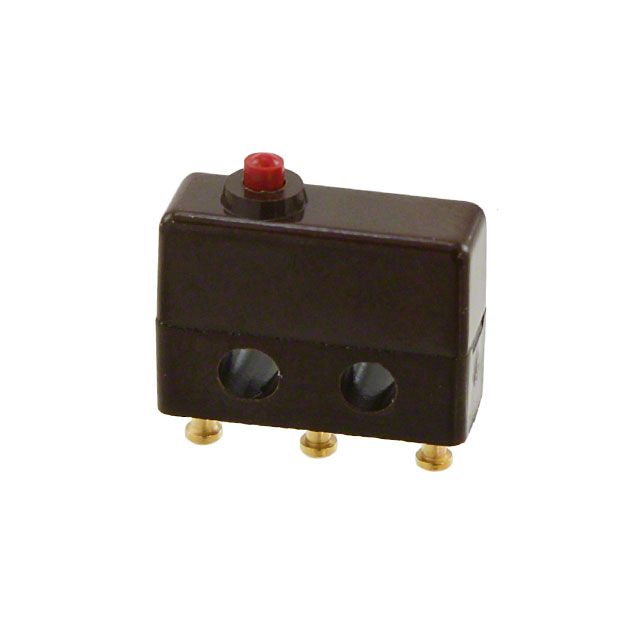

23SX39-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
23SX39-T
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 23SX39-T |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Differential Travel | 0.13 mm |
| Differential Travel | 0.005 in |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 141 gf |
| Operating Position | 8.13 mm |
| Operating Position | 0.32 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -53 °C |
| Overtravel | 0.004 in |
| Overtravel | 0.1 mm |
| Pretravel | 0.02 in |
| Pretravel | 0.5 mm |
| Release Force | 28 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.22 | |
| 10 | $ 33.34 | |||
| 25 | $ 30.93 | |||
| 50 | $ 29.23 | |||
| 100 | $ 27.62 | |||
| 250 | $ 25.94 | |||
Description
General part information
23SX39 Series
Switch SPDT Chassis Mount
