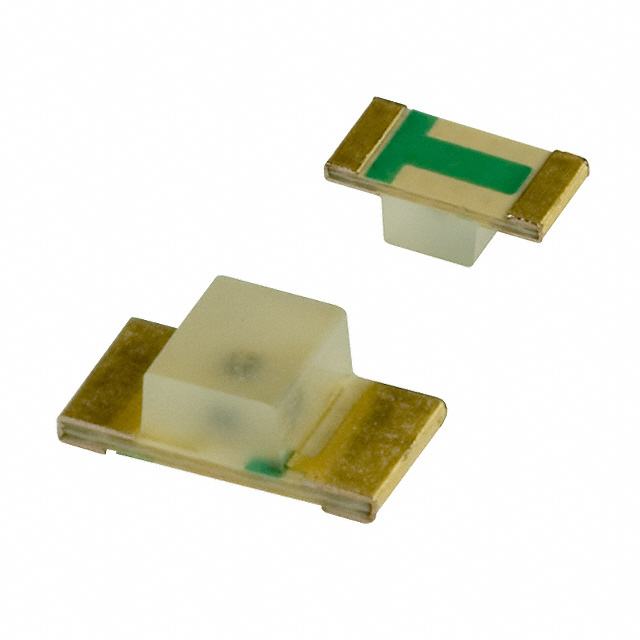

BR1111R-TR
ObsoleteStanley Electric Co
LED RED DIFF 3216 SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BR1111R-TR
ObsoleteStanley Electric Co
LED RED DIFF 3216 SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BR1111R-TR |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.3 mm |
| Lens Color | White |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 12.7 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 3216 Type |
| Viewing Angle | 149 °, 151 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Dominant [custom] | 647 nm |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BR1111 Series
Red 647nm LED Indication - Discrete 1.7V 1206 (3216 Metric)
