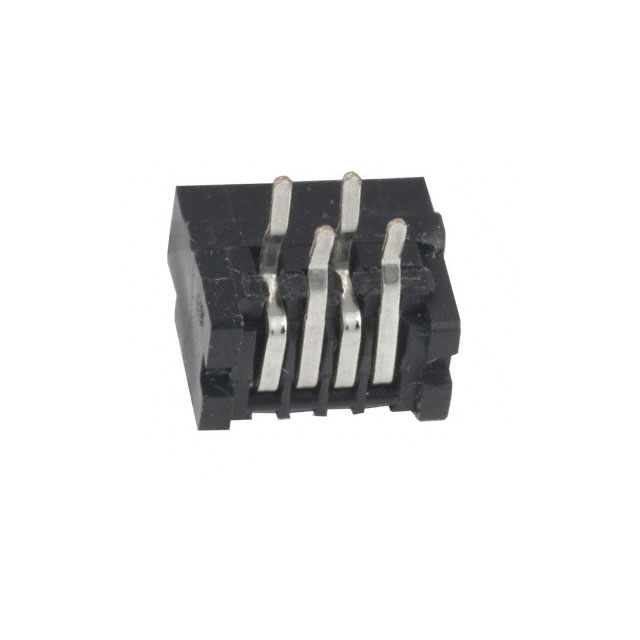

HLW4R-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 4POS 1MM R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 4POS 1MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	HLW4R-2C7LF

Actuator Color	Black
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.154 in
Height Above Board	3.9 mm
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Voltage Rating	Actuator Color	Number of Positions	Housing Material	Cable End Type	Contact Material	Mating Cycles	Pitch [x]	Pitch [x]	Housing Color	Contact Finish	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Material Flammability Rating	Termination	Height Above Board	Height Above Board	Connector/Contact Type	Flat Flex Type
Amphenol ICC (FCI) HLW4R-2C7LF	100 V	Black	4	Polybutylene Terephthalate (PBT) Glass Filled	Tapered	Phosphor Bronze	30	0.039 in	1 mm	Black	Tin	0.3 mm	85 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Solder	0.154 in	3.9 mm	Contacts Top	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
