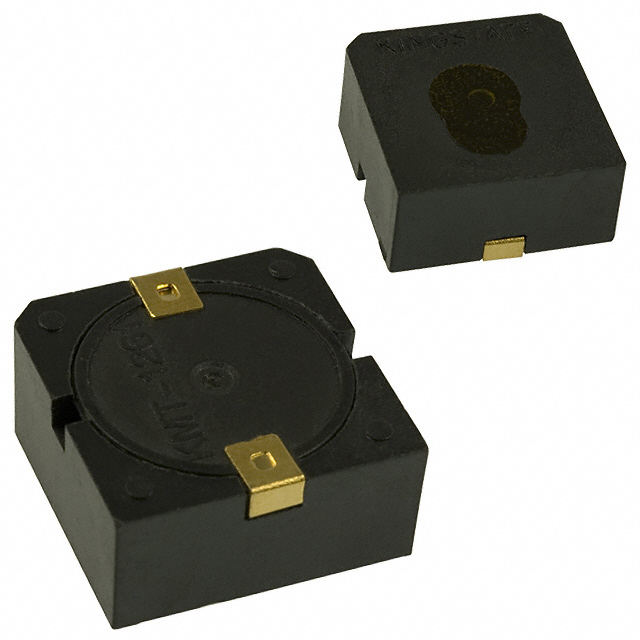

CMT-1261-SMT

Active

CUI Devices

BUZZER PIEZO 10V16.9X16.9MM SMD

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 10V16.9X16.9MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CMT-1261-SMT

Current - Supply	11 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	5 kHz
Height - Seated (Max) [Max] [z]	8.3 mm
Height - Seated (Max) [Max] [z]	0.327 in
Input Type	Peak-Peak Signal
Mounting Type	Surface Mount
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Ratings	Washable
Size / Dimension [x]	16.9 mm
Size / Dimension [x]	0.665 in
Size / Dimension [y]	16.9 mm
Size / Dimension [y]	0.665 in
Sound Pressure Level (SPL)	90 dB
Technology	Piezo
Termination	Solder Pads
Voltage - Rated	10 V
Voltage Range [Max]	20 V

Part	Port Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Termination	Voltage - Rated	Operating Mode	Frequency	Input Type	Sound Pressure Level (SPL)	Current - Supply	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage Range [Max]	Mounting Type
CUI Devices CMT-1261-SMT	Top	16.9 mm	16.9 mm	0.665 in	0.665 in	Solder Pads	10 V	Single Tone	5 kHz	Peak-Peak Signal	90 dB	11 mA	Washable	8.3 mm	0.327 in	Externally Driven Transducer	70 °C	-30 ░C	Piezo	20 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 10 V 11mA 5kHz 90dB @ 10V, 10cm Surface Mount Solder Pads
