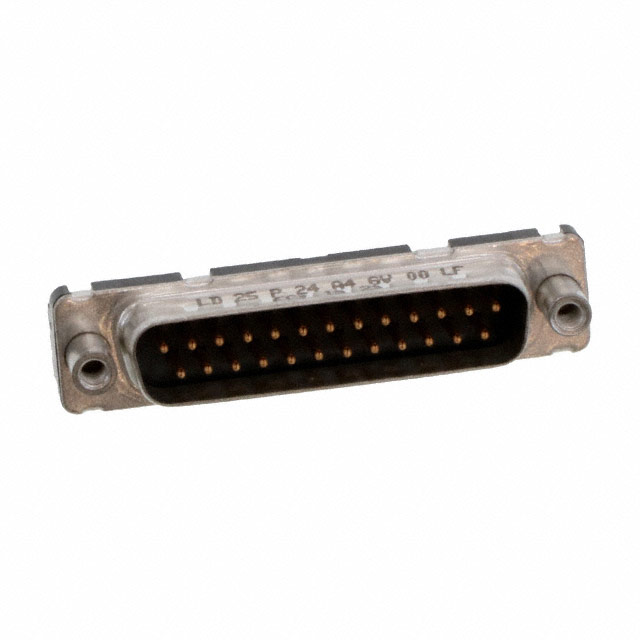

LD25P24A4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 25POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD25P24A4GV00LF

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Contact Material	Color	Current Rating (Amps)	Features	Contact Type	Material Flammability Rating	Number of Rows	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Contact Finish	Voltage Rating	Mounting Type	Connector Style	Shell Material, Finish
Amphenol ICC (FCI) LD25P24A4GV00LF	Solder	Copper Alloy	Black	5 A	Board Lock Grounding Indents	Signal	UL94 V-0	2	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Thermoplastic	Flash	B DB	3	Male Pins Plug	Gold	250 VDC	Through Hole	D-Sub	Steel Tin-Nickel Plated
