0150200366

Active

Molex

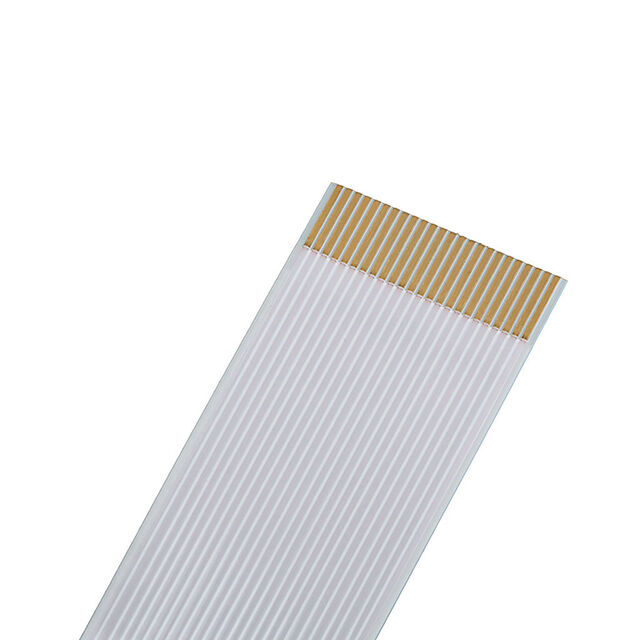

CABLE FFC/FPC 34POS 0.5MM 4"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 34POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0150200366

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	34
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

...

Part	Cable Type	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Number of Conductors	Termination Style	Length [x]
Molex 0150200366	FFC FPC	4 in	101.6 mm	4 mm	0.157 in	0.5 mm	0.02 in	34	Top on One Side Bottom on Other Backers on Both Sides
Molex 0150200380	FFC FPC		304.8 mm	4 mm	0.157 in	0.5 mm	0.02 in	34	Top on One Side Bottom on Other Backers on Both Sides	12 in
Molex 0150200396	FFC FPC	8 in	203.2 mm	4 mm	0.157 in	0.5 mm	0.02 in	36	Top on One Side Bottom on Other Backers on Both Sides
Molex 0150200105	FFC FPC	6 in	152.4 mm	4 mm	0.157 in	0.5 mm	0.02 in	10	Backers on Both Sides Top on Both Sides
Molex 0150200439	FFC FPC	8 in	203.2 mm	4 mm	0.157 in	0.5 mm	0.02 in	40	Backers on Both Sides Top on Both Sides
Molex 0150200193
Molex 0150200870	FFC FPC	9 "	228.6 mm	4 mm	0.157 in	0.5 mm	0.02 in	17	Top on One Side Bottom on Other Backers on Both Sides
Molex 0150200168	FFC FPC	4 in	101.6 mm	4 mm	0.157 in	0.5 mm	0.02 in	16	Top on One Side Bottom on Other Backers on Both Sides
Molex 0150200166	FFC FPC	2.992 in	76 mm			0.5 mm	0.02 in
Molex 0150200430	FFC FPC	3 in	76.2 mm	4 mm	0.157 in	0.5 mm	0.02 in	40	Top on One Side Bottom on Other Backers on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2000	$ 3.04

General part information

34 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)
