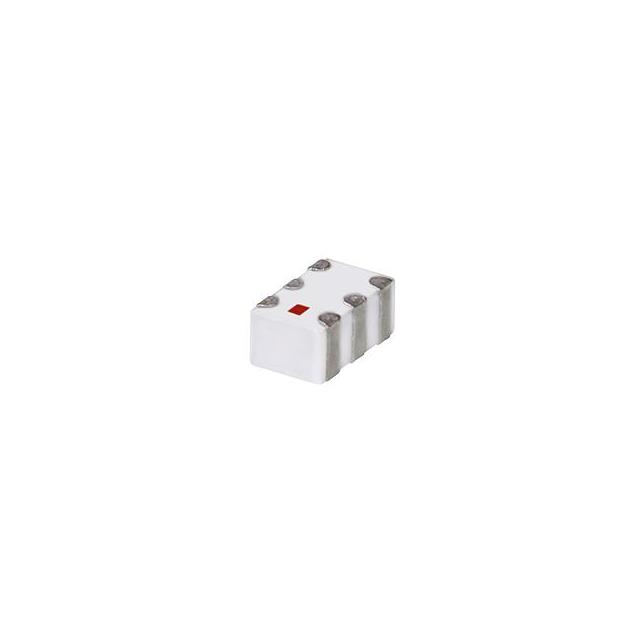

TCW2-2700+

Active

MINI-CIRCUITS

0603(1608METRIC),6PCPAD BALUN ROHS

Search across all available documentation for this part.

Active

MINI-CIRCUITS

0603(1608METRIC),6PCPAD BALUN ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	TCW2-2700+

Frequency Range [Max]	2.7 GHz
Frequency Range [Min]	500 MHz
Impedance - Unbalanced/Balanced	1:2
Insertion Loss (Max) [Max]	1.7 dB
Mounting Type	Surface Mount
Package / Case	0603
Package / Case	1608
Package / Case	6 Leads
Phase Difference	19 °
Return Loss (Min) [Min]	9.5 dB

Part	Return Loss (Min) [Min]	Phase Difference	Mounting Type	Insertion Loss (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]	Impedance - Unbalanced/Balanced	Package / Case	Package / Case	Package / Case	Impedance - Unbalanced/Balanced
MINI-CIRCUITS TCW2-282+	10.83 dB	13 °	Surface Mount	2 dB	2.8 GHz	700 MHz	1:2	0603	1608	6 Leads
MINI-CIRCUITS TCW2-2700+	9.5 dB	19 °	Surface Mount	1.7 dB	2.7 GHz	500 MHz	1:2	0603	1608	6 Leads
MINI-CIRCUITS TCW2-63+	12.76 dB	4 °	Surface Mount	2 dB	5.875 GHz	4.9 GHz	1:2	0603	1608	6 Leads
MINI-CIRCUITS TCW2-7200+	9.5 dB	8 °	Surface Mount	1.5 dB	7.2 GHz	5.5 GHz		0603	1608	6 Leads	50 Ohm 100 Ohm
MINI-CIRCUITS TCW2-722+	12 dB	15 °	Surface Mount	1.9 dB	7.125 GHz	2.4 GHz	1:2	0603	1608	6 Leads
MINI-CIRCUITS TCW2-392+		5 °	Surface Mount	1.3 dB	3.9 GHz	3.3 GHz	1:2	0603	1608	6 Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Balun 500MHz ~ 2.7GHz 1:2 0603 (1608 Metric), 6 PC Pad
