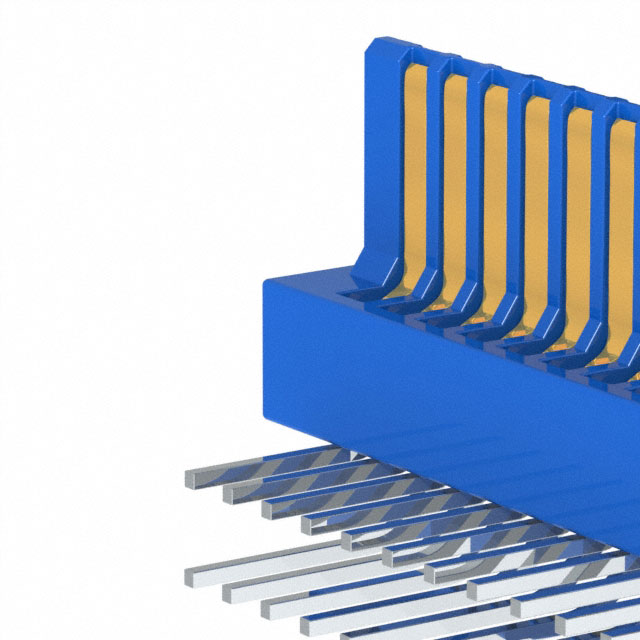

EBC17MMDN

Active

Sullins Connector Solutions

CONN CARDEDGE MALE 34POS 0.100

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC17MMDN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Gender	Male
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC17 Series

...

Part	Card Thickness	Card Thickness	Termination	Flange Feature	Flange Feature	Flange Feature	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Material - Insulation	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Color	Features
Sullins Connector Solutions EBC17DCWD	0.062 in	1.57 mm	Solder	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	2	2.54 mm	0.1 in	Through Hole	Female	10 Áin	0.25 Ám	Hairpin Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge
Sullins Connector Solutions EBC17DKSS	0.062 in	1.57 mm	Solder	Side Mount Opening Unthreaded			2	2.54 mm	0.1 in	Through Hole	Female	10 Áin	0.25 Ám	Cantilever	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm
Sullins Connector Solutions EBC17DTBH-S189	0.062 in	1.57 mm	Solder	Top Mount Opening Unthreaded			2	2.54 mm	0.1 in	Through Hole Right Angle	Female	10 Áin	0.25 Ám	Loop Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm
Sullins Connector Solutions EBC17DRTN-S93	0.093 in	2.36 mm	Solder				2	2.54 mm	0.1 in	Through Hole	Female	10 Áin	0.25 Ám	Full Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge			Blue
Sullins Connector Solutions EBC17MMDN	0.062 in	1.57 mm	Solder				2	2.54 mm	0.1 in	Through Hole Right Angle	Male	10 Áin	0.25 Ám		Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Fits Female Edgecards
Sullins Connector Solutions EBC17DREH-S13	0.062 in	1.57 mm	Solder Eyelet(s)	Top Mount Opening Unthreaded			2	2.54 mm	0.1 in	Board Edge Straddle Mount	Female	10 Áin	0.25 Ám	Full Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm	Blue	Card Extender
Sullins Connector Solutions EBC17DREH-S734	0.031 in	0.79 mm	Solder Eyelet(s)	Top Mount Opening Unthreaded			2	2.54 mm	0.1 in		Female	10 Áin	0.25 Ám	Full Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm	Blue
Sullins Connector Solutions EBC17DTMH-S189	0.062 in	1.57 mm	Solder	Top Mount Opening Unthreaded			2	2.54 mm	0.1 in	Through Hole Right Angle	Female	10 Áin	0.25 Ám	Loop Bellows	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm
Sullins Connector Solutions EBC17DKUS	0.062 in	1.57 mm	Solder	Side Mount Opening Unthreaded			2	2.54 mm	0.1 in	Through Hole Right Angle	Female	10 Áin	0.25 Ám	Cantilever	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge	0.125 in	3.18 mm
Sullins Connector Solutions EBC17DKRT	0.062 in	1.57 mm	Solder	4-40 Flush Mount Threaded Insert Top Opening			2	2.54 mm	0.1 in	Board Edge Straddle Mount	Female	10 Áin	0.25 Ám	Cantilever	Dual	Gold	125 °C	-65 ░C	34	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Non Specified - Dual Edge				Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 5.08

Description

General part information

EBC17 Series

34 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm)
