44L45-01-1-07N

Active

Grayhill Inc.

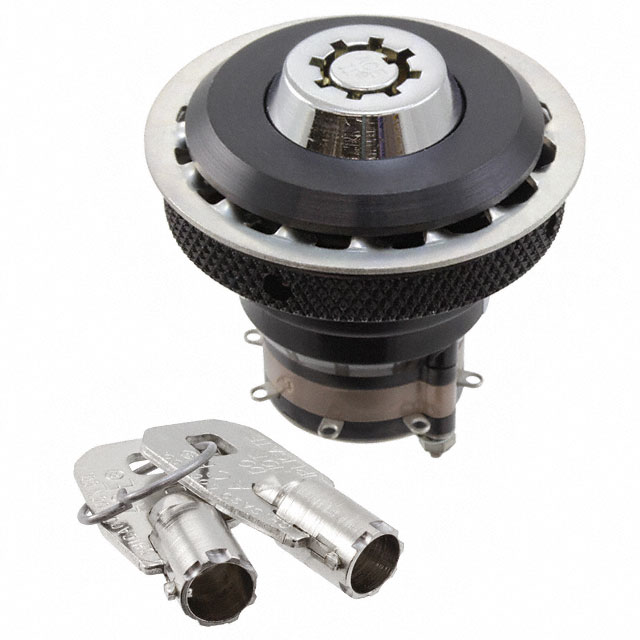

SWITCH KEYLOCK 7POS SP7T 5A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

44L45-01-1-07N

Active

Grayhill Inc.

SWITCH KEYLOCK 7POS SP7T 5A 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	44L45-01-1-07N

Actuator Type	Tubular Key
Angle of Throw	45 °
Circuit	SP7T
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	1 A, 5 A
Depth Behind Flange [z]	39.52 mm
Electrical Life	25000 Steps
Key Removable Positions	All
Mechanical Life	100000 Cycles
Number of Positions	7
Panel Cutout Dimensions [diameter]	34.93 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

44L45 Series

Part	Voltage Rating - DC	Mechanical Life	Voltage Rating - AC	Actuator Type	Depth Behind Flange	Switch Function	Panel Cutout Dimensions [diameter]	Angle of Throw	Key Removable Positions	Current Rating (Amps)	Termination Style	Contact Timing	Electrical Life	Contact Material	Circuit	Depth Behind Flange [z]	Number of Positions	Actuator Type [diameter]
Grayhill Inc. 44L45-02-1-03N	28 V	100000 Cycles	115 V	Tubular Key	48.31 mm	On-On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SP3T
Grayhill Inc. 44L45-01-2-03S	28 V	100000 Cycles	115 V	Tubular Key		On-On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Shorting	25000 Steps	Silver Alloy	DP3T	39.52 mm
Grayhill Inc. 44L45-01-1-05N	28 V	100000 Cycles	115 V	Tubular Key		On-On-On-On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SP5T	39.52 mm
Grayhill Inc. 44L45-01-1-07N	28 V	100000 Cycles	115 V	Tubular Key			34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SP7T	39.52 mm	7
Grayhill Inc. 44L45-01-1-02N	28 V	100000 Cycles	115 V	Tubular Key		On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SPDT	39.52 mm	2
Grayhill Inc. 44L45-01-1-05S	28 V	100000 Cycles	115 V	Flatted		On-On-On-On-On		45 °	All	1 A 5 A	Solder Lug	Shorting	25000 Steps	Silver Alloy	SP5T	39.52 mm		6.35 mm
Grayhill Inc. 44L45-02-1-02N	28 V	100000 Cycles	115 V	Tubular Key	48.31 mm	On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SPDT		2
Grayhill Inc. 44L45-03-2-03N	28 V	100000 Cycles	115 V	Tubular Key	57.1 mm	On-On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	DP3T
Grayhill Inc. 44L45-02-1-08N	28 V	100000 Cycles	115 V	Tubular Key	48.31 mm		34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy			8
Grayhill Inc. 44L45-04-1-05N	28 V	100000 Cycles	115 V	Tubular Key	65.89 mm	On-On-On-On-On	34.93 mm	45 °	All	1 A 5 A	Solder Lug	Non-Shorting	25000 Steps	Silver Alloy	SP5T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 150.11
Newark	Each	1	$ 219.54
		100	$ 179.72
		250	$ 163.94

Description

General part information

44L45 Series

Keylock Switch 7 Position SP7T 5A (AC), 1A (DC) 115 VAC 28 VDC Panel Mount
