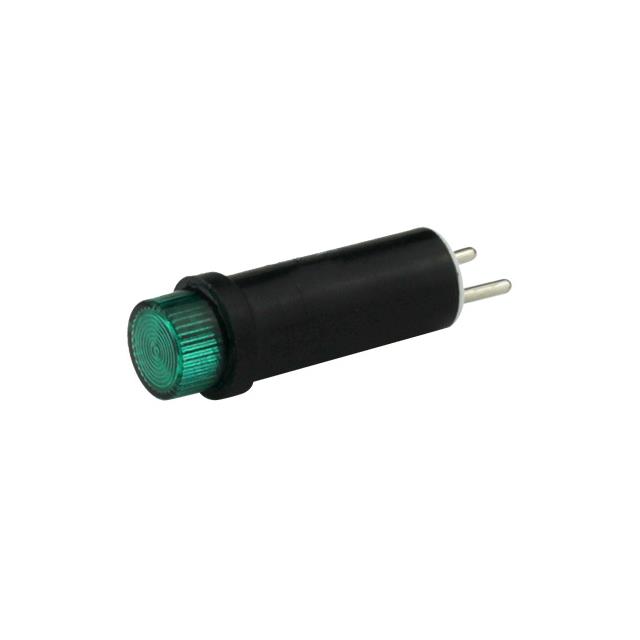

C91-BG24H-CGO
ActiveVisual Communications Company - VCC
PM .290" ED STD 24VDC GREEN BK B
Deep-Dive with AI
Search across all available documentation for this part.
C91-BG24H-CGO
ActiveVisual Communications Company - VCC
PM .290" ED STD 24VDC GREEN BK B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C91-BG24H-CGO |
|---|---|
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 7.1 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions [x] | 7.37 mm |
| Panel Cutout Dimensions [x] | 0.29 in |
| Panel Cutout Shape | Round |
| Termination Style | 0.201 in |
| Termination Style | Wire Wrap |
| Termination Style | 5.1 mm |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 24 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.28 | |
| 10 | $ 6.42 | |||
| 25 | $ 5.68 | |||
| 100 | $ 4.85 | |||
| 250 | $ 4.45 | |||
| 500 | $ 4.21 | |||
| 1000 | $ 4.01 | |||
| 2500 | $ 3.90 | |||
Description
General part information
C91-BG24 Series
LED Panel Indicator Green Clear 60° 24V 20mA Wire Wrap, 0.201" (5.1mm)
Documents
Technical documentation and resources
No documents available
