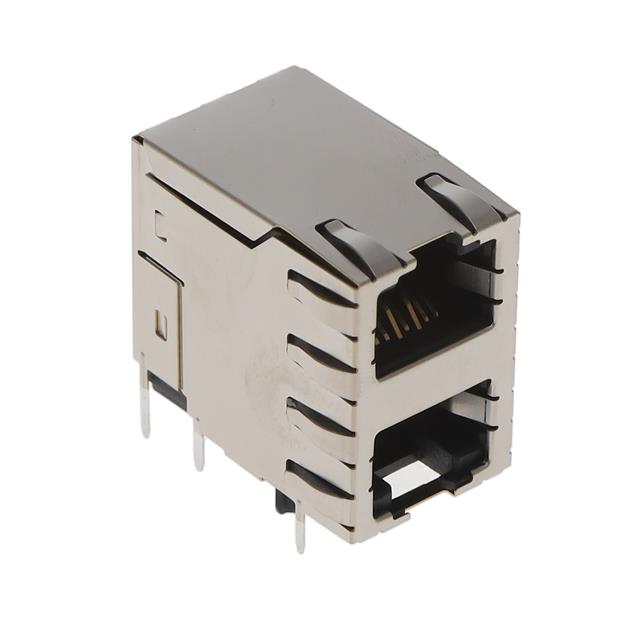

SS-73100-082 - SS-73100-082

SS-73100-082

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 2 X 1 (STACKED), 8P8C, CAT5E, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCA-STW-ETHERNET-SOLUTIONS-BROADCOM-GUIDEDatasheet+4
SS-73100-082 - SS-73100-082

SS-73100-082

Active
BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 JACK, 2 X 1 (STACKED), 8P8C, CAT5E, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsCA-STW-ETHERNET-SOLUTIONS-BROADCOM-GUIDEDatasheet+4

Technical Specifications

Parameters and characteristics for this part

SpecificationSS-73100-082
Connector TypeJack
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact MaterialCopper Alloy
FeaturesBoard Guide
Housing MaterialThermoplastic
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole, Panel Mount
Number of Ports2
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows2
Orientation90 °
RatingsCat5e
ShieldingShielded, EMI Finger
Tab DirectionUp and Down
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.50
10$ 3.83
25$ 3.59
40$ 3.47
80$ 3.30
240$ 3.06
440$ 2.93
960$ 2.77
2400$ 2.60
NewarkEach 250$ 3.43
500$ 3.30
1000$ 2.81

Description

General part information

SS-73100 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
