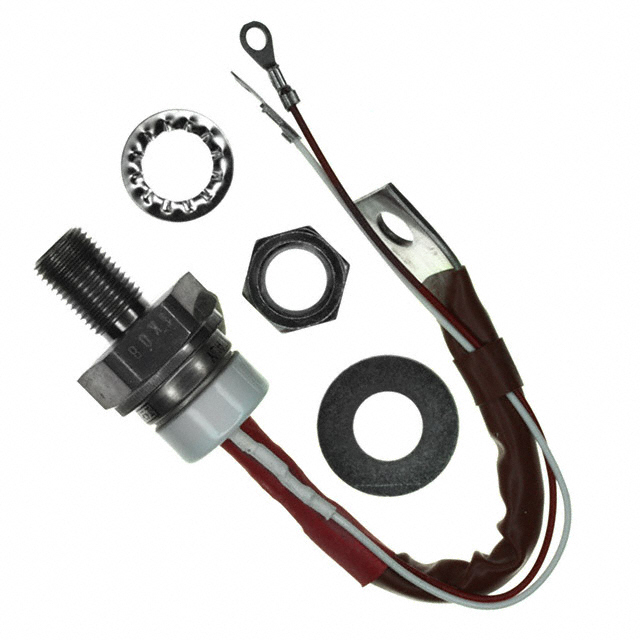

VS-110RKI120

Active

Vishay General Semiconductor - Diodes Division

SCR 1.2KV 172A TO209AC

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

SCR 1.2KV 172A TO209AC

Technical Specifications

Parameters and characteristics for this part

Specification	VS-110RKI120

Current - Gate Trigger (Igt) (Max) [Max] [x]	120 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2180 A, 2080 A
Current - Off State (Max) [Max]	20 mA
Current - On State (It (AV)) (Max)	110 A
Current - On State (It (RMS)) (Max) [Max]	172 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-209AC, Stud, TO-94-4
SCR Type	Standard Recovery
Supplier Device Package	TO-209AC (TO-94)
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.2 kV
Voltage - On State (Vtm) (Max) [Max]	1.57 V

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	SCR Type	Voltage - Off State	Current - On State (It (AV)) (Max)	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Supplier Device Package	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max] [x]	Operating Temperature [Max]	Operating Temperature [Min]
Vishay General Semiconductor - Diodes Division VS-110RKI120	2 V	Chassis Stud Mount	Standard Recovery	1.2 kV	110 A	172 A	200 mA	20 mA	1.57 V	TO-209AC (TO-94)	Stud TO-209AC TO-94-4	2080 A 2180 A	120 mA	140 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-110RKI120PBF	2 V	Chassis Stud Mount	Standard Recovery	1.2 kV	110 A	172 A	200 mA	20 mA	1.57 V	TO-209AC (TO-94)	Stud TO-209AC TO-94-4	1750 A 1830 A	120 mA	125 °C	-40 °C
Vishay General Semiconductor - Diodes Division VS-110RKI120M	2 V	Chassis Stud Mount	Standard Recovery	1.2 kV	110 A	172 A	200 mA	20 mA	1.57 V	TO-209AC (TO-94)	Stud TO-209AC TO-94-4	2080 A 2180 A	120 mA	140 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 55.34

General part information

SCR 1.2 kV 172 A Standard Recovery Chassis, Stud Mount TO-209AC (TO-94)
