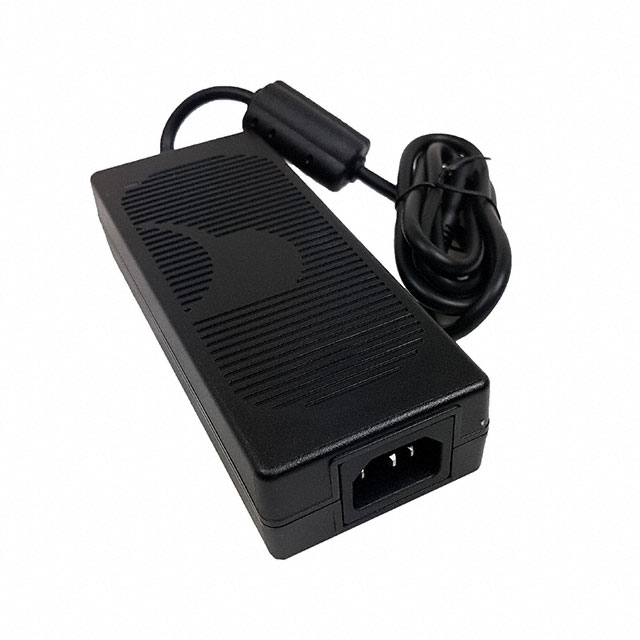

TR9CH6666T00-IM(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 18V 120W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 18V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CH6666T00-IM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, ETL, CB, CE, S-Mark, cETLus, VCCI, BSMI, UKRSepro, CCC, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	6.67 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	120 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	62368-1, 60601-1-11, 60601-1-2, 61347-1, 60335-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Input Connector	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Cord Length	Cord Length	Input Type	Region Utilized	Power (Watts)	Efficiency	Voltage - Output	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Form	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number
GlobTek, Inc. TR9CH6666T00-IM(R6B)	IEC 320-C14	150 mW	6.67 A	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	1.2 m	47.2 in	Cord	International	120 W	Level VI	18 V	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UKRSepro VCCI	90 VAC	264 VAC	1.3mm x 3.5mm Barrel Plug Kit	Desktop (Class I)	Household Appliances ITE (Commercial) Medical	-20 C	40 °C	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
