325-010-500-209
ActiveEDAC Inc.

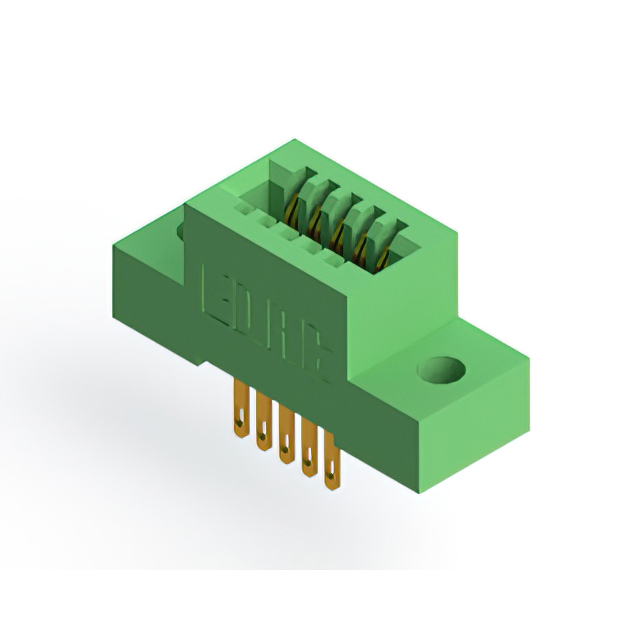

CARD EDGE CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .16, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
325-010-500-209
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .16, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-010-500-209 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
325-010 Series
| Part | Contact Material | Flange Feature | Number of Positions/Bay/Row [custom] | Contact Type | Termination | Color | Pitch [x] | Pitch [x] | Card Type | Number of Rows | Material - Insulation | Gender | Card Thickness | Card Thickness | Number of Positions | Read Out | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Rows | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 10 | Cantilever | Wire Wrap | Green | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Single | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 1 | Gold | ||
EDAC Inc. | Copper Alloy | Flush Mount Top Opening Unthreaded | 10 | Cantilever | Solder | Green | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Single | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 1 | Gold | 0.16 in | 4.06 mm |
EDAC Inc. | Copper Alloy | 5 | Cantilever | Solder | Green | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Dual | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 2 | Gold | |||
EDAC Inc. | Copper Alloy | Flush Mount Top Opening Unthreaded | 5 | Cantilever | Solder Eyelet(s) | Green | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Dual | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 2 | Gold | 0.16 in | 4.06 mm |
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 5 | Cantilever | Solder Eyelet(s) | Green | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Dual | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 2 | Gold | ||
EDAC Inc. | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 5 | Cantilever | Wire Wrap | Green | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Dual | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 2 | Gold | ||
EDAC Inc. | Copper Alloy | Flush Mount Top Opening Unthreaded | 10 | Cantilever | Wire Wrap | Green | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Single | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 1 | Gold | 0.16 in | 4.06 mm |
EDAC Inc. | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 10 | Cantilever | Wire Wrap | Green | 2.54 mm | 0.1 in | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Single | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 1 | Gold | ||
EDAC Inc. | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 5 | Cantilever | Wire Wrap | Green | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Diallyl Phthalate (DAP) | Female | 3.18 mm | 0.125 in | 10 | Dual | 10 Áin | 0.25 Ám | 125 °C | -65 ░C | Through Hole | 2 | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-010 Series
10 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
