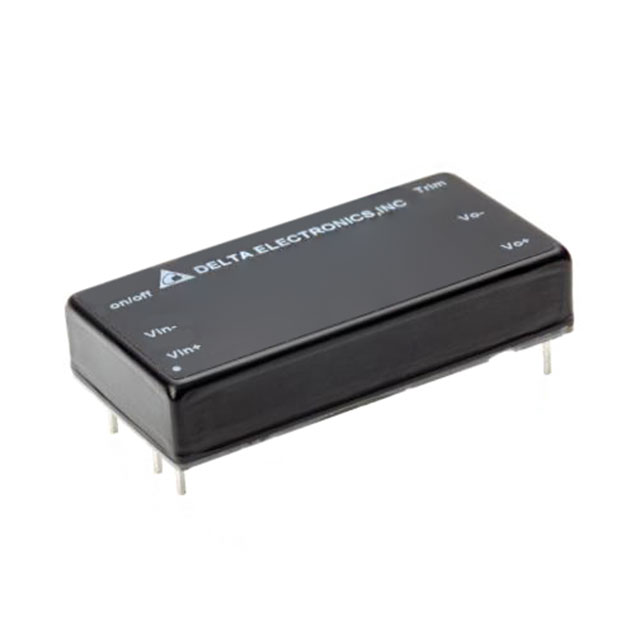

S24SP24002PDFA
ActiveDelta Electronics
MODULE DC-DC 24VIN 1-OUT 24V 1.7A 40W 6-PIN
Deep-Dive with AI
Search across all available documentation for this part.
S24SP24002PDFA
ActiveDelta Electronics
MODULE DC-DC 24VIN 1-OUT 24V 1.7A 40W 6-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S24SP24002PDFA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 1.7 A |
| Efficiency | 92.5 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 10.5 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.83 | |
| 5 | $ 46.04 | |||
| 10 | $ 44.88 | |||
| 25 | $ 43.40 | |||
| 50 | $ 42.31 | |||
| 100 | $ 41.25 | |||
| 250 | $ 39.89 | |||
Description
General part information
S24SP Series
Isolated Module DC DC Converter 1 Output 24V 1.7A 9V - 36V Input
Documents
Technical documentation and resources
No documents available
