AA3529SES/L

Active

Kingbright

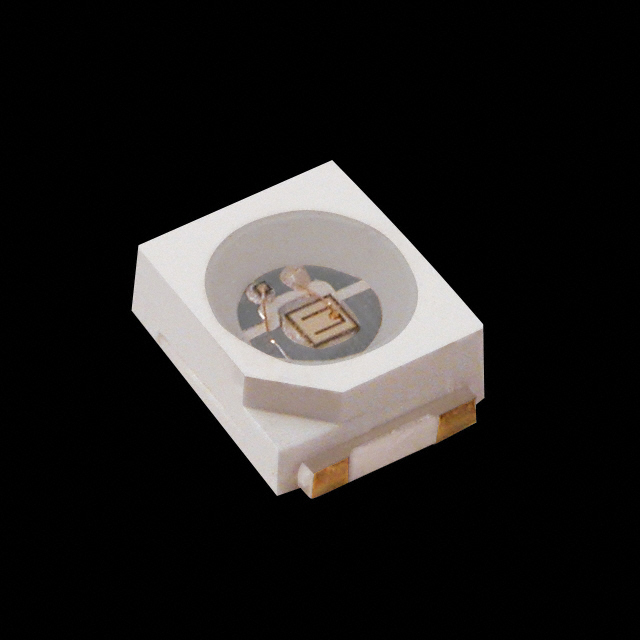

LED AA3529 ORANGE 618NM SMD

Search across all available documentation for this part.

Active

Kingbright

LED AA3529 ORANGE 618NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	AA3529SES/L

Current - Max [Max]	150 mA
Current - Test	150 mA
Height - Seated (Max) [Max]	0.061 in
Height - Seated (Max) [Max]	1.55 mm
Lumens/Watt @ Current - Test	7 lm/W
Luminous Flux @ Current/Temperature	4 lm
Mounting Type	Surface Mount
Package / Case	2-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	80 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength	618 nm

Part	Thermal Resistance of Package [custom]	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Viewing Angle	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Wavelength	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Current - Max [Max]	Color	Thermal Resistance of Package [custom]
Kingbright AA3529SES/L	80 °C/W	2-PLCC	150 mA	3.6 V	Surface Mount	SMD	120 °	4 lm	0.061 in	1.55 mm	618 nm	3.2 mm	0.126 in	0.11 in	2.8 mm	7 lm/W	150 mA
Kingbright AA3529SYS/L		2-PLCC	150 mA	3.6 V	Surface Mount	SMD	120 °	6 lm	0.061 in	1.55 mm	590 nm	3.2 mm	0.126 in	0.11 in	2.8 mm	11 lm/W	150 mA	Yellow	90 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color AA3529 Orange 618nm (Typ) 2-PLCC
