25482 BK199

Active

ALPHA WIRE

MULTI-PAIR 4COND 22AWG BLK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 4COND 22AWG BLK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25482 BK199

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Length	Length	Conductor Material	Features	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Shield Type	Number of Conductors	Ratings	Shield Material	Wire Gauge	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 25482 BK199	1000 ft	304.8 m	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	300 V	7	30 AWG	Poly-Vinyl Chloride (PVC)	Foil	4	ISO 10993 UL Style 20668	Aluminum	22 AWG	Polyurethane (PU)	-30 ░C	90 °C	100 %	Multi-Pair	Black	5.99 mm	0.236 in
ALPHA WIRE 25482 WH199	1000 ft	304.8 m	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	300 V	7	30 AWG	Poly-Vinyl Chloride (PVC)	Foil	4	ISO 10993 UL Style 20668	Aluminum	22 AWG	Polyurethane (PU)	-30 ░C	90 °C	100 %	Multi-Pair		5.99 mm	0.236 in
ALPHA WIRE 25482 OR199	1000 ft	304.8 m	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	300 V	7	30 AWG	Poly-Vinyl Chloride (PVC)	Foil	4	ISO 10993 UL Style 20668	Aluminum	22 AWG	Polyurethane (PU)	-30 ░C	90 °C	100 %	Multi-Pair	Orange	5.99 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.23
Newark	1 Foot	25	$ 4.54

General part information

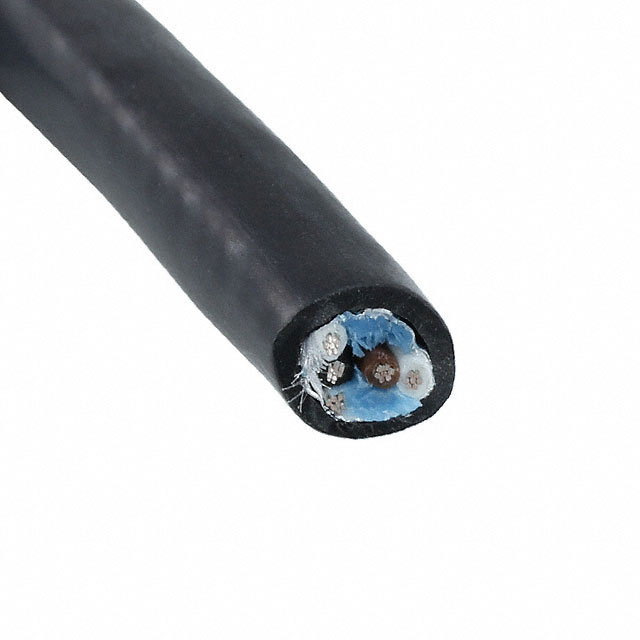

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 22 AWG Foil 1000.0' (304.8m)
