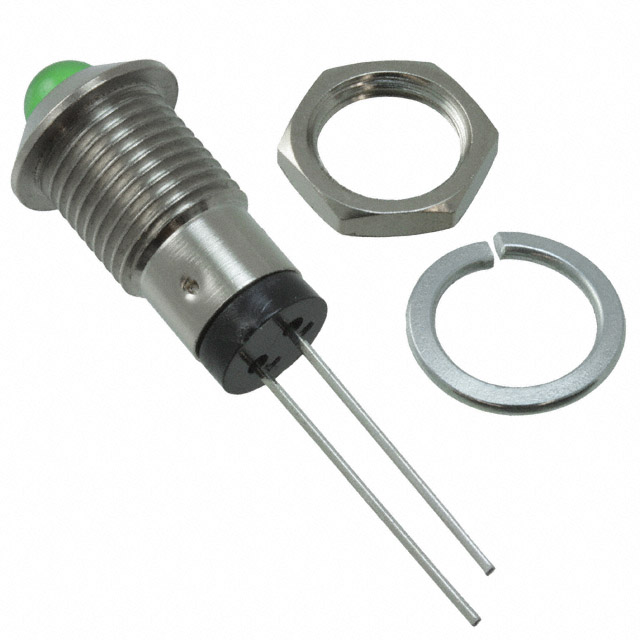

MPC5GD - MPC5GD

MPC5GD

Active
Bivar Inc.

LED PANEL MOUNT INDICATOR, GREEN, 2.1 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MPC5GD - MPC5GD

MPC5GD

Active
Bivar Inc.

LED PANEL MOUNT INDICATOR, GREEN, 2.1 VDC, 8 MM, 30 MA, 25 MCD, NOT RATED

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMPC5GD
Current30 mA
Lamp ColorGreen
Lens ColorGreen
Lens SizeT-1 3/4
Lens Size5 mm
Lens StyleRound with Domed Top
Lens TransparencyDiffused
Millicandela Rating25 mcd
Panel Cutout Dimensions8.13 mm
Panel Cutout Dimensions0.32 in
Panel Cutout ShapeRound
Termination StylePC Pin
TypeLED
Viewing Angle45 °
Voltage2.1 V
Wavelength - Peak568 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.54
10$ 1.68
80$ 1.28
440$ 1.08
945$ 1.06
NewarkEach 100$ 1.41
500$ 1.30
1000$ 1.24
2500$ 1.16

Description

General part information

MPC5GD Series

LED Panel Indicator Green Diffused 45° 2.1V 30mA PC Pin
