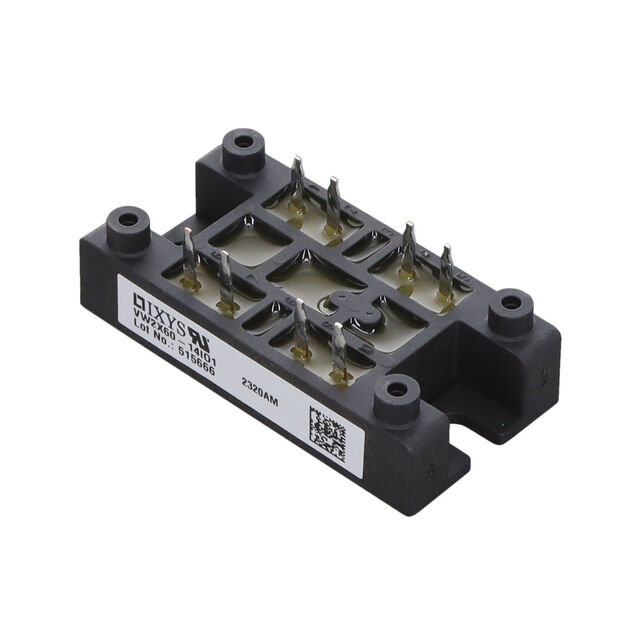

VW2X60-14IO1

Active

IXYS

AC CONTROLL MODULE 1400V 60A

Search across all available documentation for this part.

Active

IXYS

AC CONTROLL MODULE 1400V 60A

Technical Specifications

Parameters and characteristics for this part

Specification	VW2X60-14IO1

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	560 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	520 A
Current - On State (It (AV)) (Max) [Max]	27 A
Current - On State (It (RMS)) (Max)	43 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	4 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	2-Phase Controller - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.4 kV

Part	Current - On State (It (AV)) (Max) [Max]	Structure	Package / Case	Number of SCRs, Diodes	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Mounting Type	Voltage - Off State	Current - On State (It (RMS)) (Max)	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [x]
IXYS VW2X60-14IO1	27 A	2-Phase Controller - All SCRs	Module	4 SCRs	-40 °C	125 ¯C	560 A	520 A	Chassis Mount	1.4 kV	43 A	200 mA	1.5 V	100 mA
