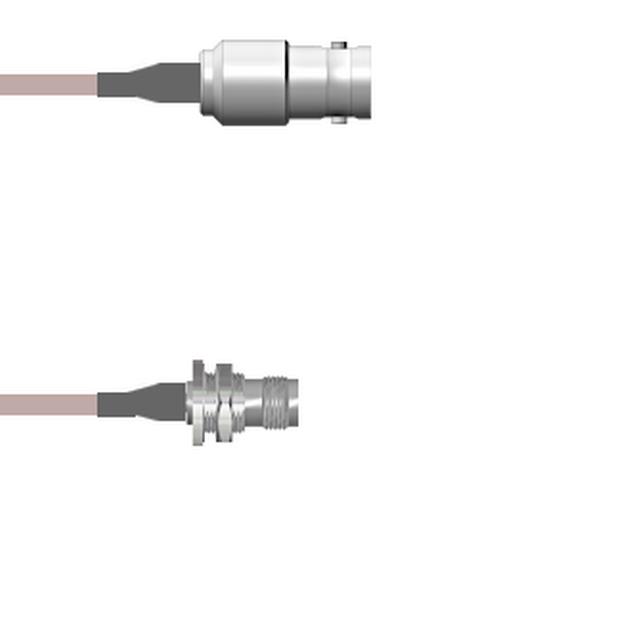

Q-0204D0001.75M

Active

Amphenol Custom Cable

COAX CBL BNC TO TNC 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO TNC 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0204D0001.75M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Part	1st Connector	Color	2nd Contact Gender	Features	Style	Length	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Feature	Overall Impedance	Cable Type	1st Contact Gender
Amphenol Custom Cable Q-0204D00012.5M	BNC Jack	Copper	Female	Shielded	BNC to TNC	8.2 '	98.4 in	2.5 m	Panel Mount	4 GHz	TNC Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	RG-178	Female
Amphenol Custom Cable Q-0204D0001012i	BNC Jack	Copper	Female	Shielded	BNC to TNC		12 "	304.8 mm	Panel Mount	4 GHz	TNC Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	RG-178	Female
Amphenol Custom Cable Q-0204D0001003i	BNC Jack	Copper	Female	Shielded	BNC to TNC		3 in	76.2 mm	Panel Mount	4 GHz	TNC Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	RG-178	Female
Amphenol Custom Cable Q-0204D0001.75M	BNC Jack	Copper	Female	Shielded	BNC to TNC		29.53 "	750 mm	Panel Mount	4 GHz	TNC Jack	Free Hanging (In-Line)	Bulkhead - Front Side Nut	50 Ohms	RG-178	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-178 29.53" (750.00mm)
