SRS8-2-14-01

Active

Essentra Access Solutions

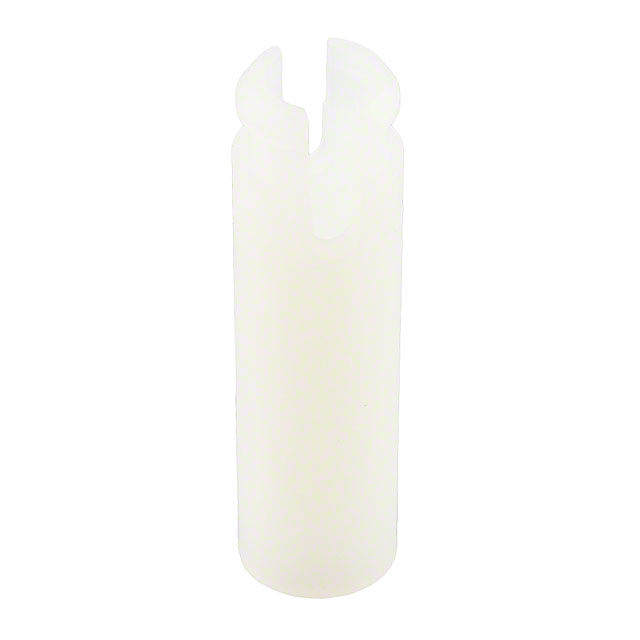

BRD SPT SNAP LOCK SCREW MNT 7/8"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK SCREW MNT 7/8"

Technical Specifications

Parameters and characteristics for this part

Specification	SRS8-2-14-01

Between Board Height	0.875 in
Between Board Height	22.23 mm
Between Board Height	0.875 in
Holding Type	Snap Lock
Length - Overall [x]	1.026 in
Length - Overall [x]	26.05 mm
Material	Nylon
Mounting Hole Diameter [diameter]	0.232 "
Mounting Hole Diameter [diameter]	5.9 mm
Mounting Panel Thickness	2.2 mm
Mounting Panel Thickness	0.087 in
Mounting Type	Screw Mount
Support Hole Diameter [diameter]	0.232 in
Support Hole Diameter [diameter]	5.9 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Material	Length - Overall	Length - Overall	Length - Overall	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Holding Type	Mounting Type	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions SRS8-6-01	0.0625 "	0.062 "	1.57 mm	0.232 in	5.9 mm	0.375 in	0.375 in	9.53 mm	Nylon	0.5 in	0.5 in	12.7 mm	0.062 in	0.0625 in	1.57 mm	0.232 "	5.9 mm	Snap Lock	Screw Mount
Essentra Access Solutions SRS8-2-14-01	0.0625 "	0.062 "	1.57 mm	0.232 in	5.9 mm	0.875 in	22.23 mm	0.875 in	Nylon				0.087 in		2.2 mm	0.232 "	5.9 mm	Snap Lock	Screw Mount	1.026 in	26.05 mm
Essentra Access Solutions SRS8-7-01	0.0625 "	0.062 "	1.57 mm	0.232 in	5.9 mm	0.438 in	11.13 mm	0.4375 in	Nylon				0.062 in	0.0625 in	1.57 mm	0.232 "	5.9 mm	Snap Lock	Screw Mount	0.563 in	14.3 mm
Essentra Access Solutions SRS8-8-01	0.0625 "	0.062 "	1.57 mm	0.232 in	5.9 mm	0.5 in	0.5 in	12.7 mm	Nylon				0.062 in	0.0625 in	1.57 mm	0.232 "	5.9 mm	Snap Lock	Screw Mount	0.626 in	15.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.27

General part information

Board Support Snap Lock / Screw Mount Nylon 0.875" (22.23mm) 7/8"
