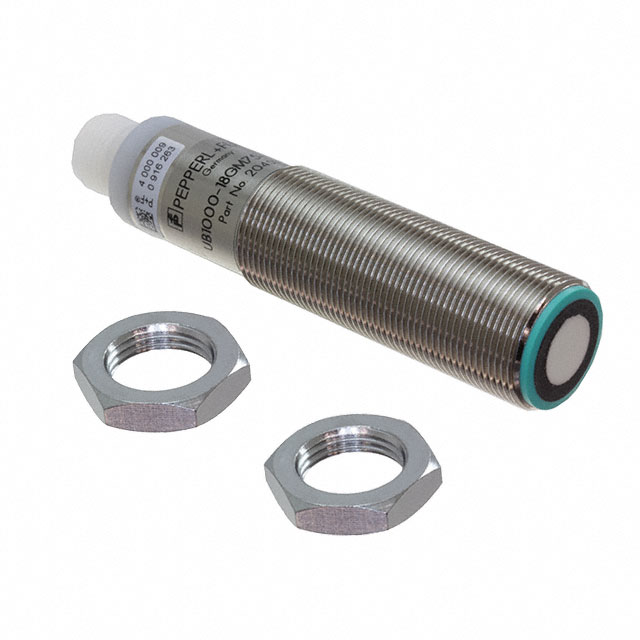

UB1000-18GM75-E5-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 70-1000MM PNP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UB1000-18GM75-E5-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 70-1000MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB1000-18GM75-E5-V15 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 4-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance [Max] | 39.37 in |
| Sensing Distance [Max] | 1000 mm |
| Sensing Distance [Min] | 70 mm |
| Sensing Distance [Min] | 2.756 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UB1000 Series
ULTRASONIC SEN 70-1000MM PNP
