10368-28-1-0500-005-1-TS

Active

CnC Tech, LLC

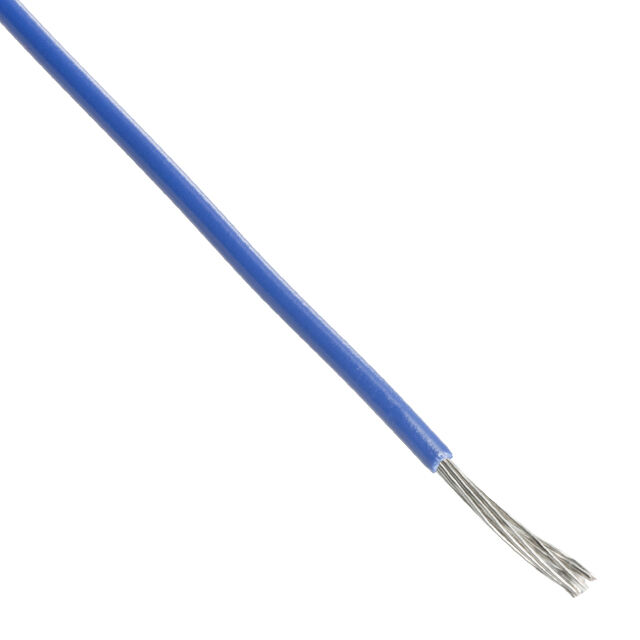

HOOK-UP STRND 28AWG 300V BLU 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet Prior to DC 22/03 +1

10368-28-1-0500-005-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 28AWG 300V BLU 25'

Deep-Dive with AI

DocumentsDatasheet Datasheet Prior to DC 22/03 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10368-28-1-0500-005-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	0.005 in
Conductor Strand [custom]	7
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.91 mm
Jacket (Insulation) Diameter [diameter]	0.036 in
Jacket (Insulation) Material	Polyethylene (XLPE), Irradiated
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Blue
Length	15.24 m
Length [x]	50 ft, 500 ', 25 ft
Length [x]	152.4 m, 7.62 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 10368
Voltage	300 V
Wire Gauge	28 AWG

10368-28 Series

Part	Voltage	Features	Wire Gauge	Length	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket Color	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
CnC Tech, LLC 10368-28-1-0500-006-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Brown	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-007-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Green	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-001-1-TS	300 V	Oil Resistant	28 AWG		25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Black	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-005-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	25 ft 50 ft 500 '	7.62 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Blue	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-004-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Red	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-002-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned		Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-008-1-TS	300 V	Oil Resistant	28 AWG		25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Orange	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in
CnC Tech, LLC 10368-28-1-0500-010-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	50 ft 100 ft	30.5 m	105 ░C	-10 °C	Copper Tinned	Violet	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.23 mm	0.009 in	0.89 mm	0.035 in
CnC Tech, LLC 10368-28-1-0500-003-1-TS	300 V	Oil Resistant	28 AWG	15.24 m	50 ft 100 ft 500 '	30.5 m 152.4 m	105 ░C	-10 °C	Copper Tinned	Yellow	Polyethylene (XLPE) Irradiated	Hook-Up	7	0.005 in	UL Style 10368	0.25 mm	0.01 in	0.91 mm	0.036 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 5.33
		1	$ 9.83
		2	$ 9.36
		2	$ 5.08
		3	$ 4.93
		4	$ 5.08
		5	$ 4.76
		5	$ 8.74
		7	$ 4.65
		10	$ 8.32
		10	$ 4.53
		20	$ 7.94
		20	$ 4.53
		25	$ 4.25
		40	$ 4.30
		50	$ 7.42
		50	$ 4.04
		100	$ 3.84
		100	$ 7.09
		200	$ 6.71
		200	$ 3.83
		400	$ 3.65
		500	$ 6.29
		500	$ 0.18
		1000	$ 0.17
		2500	$ 0.16
		5000	$ 0.15
		12500	$ 0.15
		25000	$ 0.14
		50000	$ 0.13
