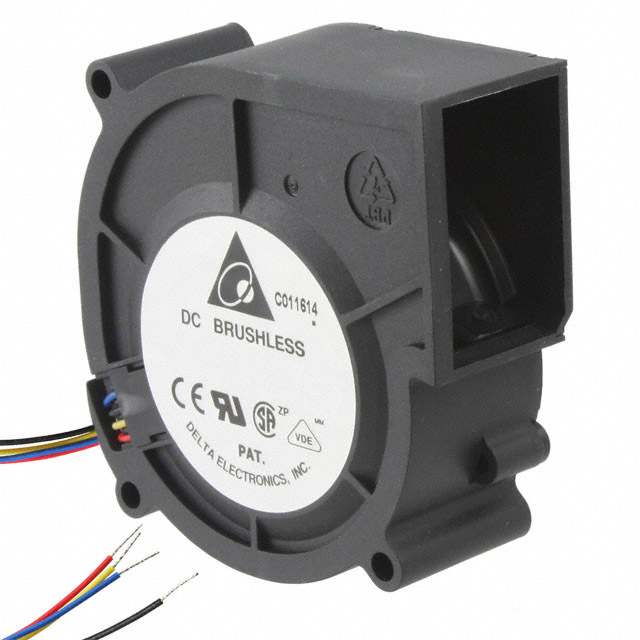

BFB1012HH-TP48
ObsoleteDelta Electronics
FAN BLOWER 97.2X33MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
BFB1012HH-TP48
ObsoleteDelta Electronics
FAN BLOWER 97.2X33MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BFB1012HH-TP48 |
|---|---|
| Air Flow | 28.3 CFM |
| Air Flow | 0.792 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.69 A |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 53.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 8.28 W |
| RPM | 3200 RPM |
| Size / Dimension [x] | 97.2 mm |
| Size / Dimension [y] | 94.4 mm |
| Static Pressure | 0.947 in H2O |
| Static Pressure | 235.9 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 180.08 g |
| Weight | 0.397 lb |
| Width [y] | 33 mm |
BFB1012 Series
| Part | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | RPM | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Noise | Bearing Type | Material - Frame | Static Pressure | Static Pressure | Power (Watts) | Voltage - Rated | Lifetime @ Temp. | Termination | Features | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Material - Blade | Fan Type | Weight | Weight | Width [y] | Air Flow | Air Flow | Size / Dimension [y] | Approval Agency | Width [x] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Rectangular/Rounded | 94.3 mm | 96.6 mm | 5800 RPM | 1.97 A | 10.8 VDC | 14 V | 62 dB(A) | Ball | Plastic | 3.694 in H2O | 920.1 Pa | 23.64 W | 12 VDC | 35 °C 90000 Hrs | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 32.9 mm | 45.5 CFM | 1.27 mł/min | ||||
Delta Electronics | 97.2 mm | 3200 RPM | 0.55 A | 4 VDC | 13.2 VDC | 52.5 dB(A) | Ball | Plastic | 0.893 in H2O | 222.4 Pa | 6.6 W | 12 VDC | 50000 Hrs | 2 Wire Leads | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 166.01 g | 0.366 lb | 33 mm | 22.6 CFM | 0.633 mł/min | 94.4 mm | CE CSA UL VDE | |||||
Delta Electronics | Rectangular/Rounded | 94.3 mm | 96.6 mm | 7000 RPM | 2.15 A | 12 VDC | 16.8 VDC | 68 dB | Ball | Plastic | 4.764 in H2O | 1186.7 Pa | 30.53 W | 14.2 VDC | 50000 Hrs | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 50 °C | 50 °C | -10 °C | -10 °C | Plastic | Blower | 175.09 g | 0.386 lb | 37 CFM | 1.04 mł/min | CE CSA UL VDE | 24.9 mm | |||
Delta Electronics | 97.2 mm | 4000 RPM | 1.25 A | 7 V | 13.2 VDC | 57 dB | Ball | Plastic | 1.564 in H2O | 389.6 Pa | 15 W | 12 VDC | 50000 Hrs | 2 Wire Leads | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 34.3 CFM | 0.96 m³/min | 94.4 mm | CE CSA UL VDE | |||||
Delta Electronics | 97.2 mm | 3200 RPM | 0.69 A | 10.8 VDC | 13.2 VDC | 53.5 dB | Ball | Plastic | 0.947 in H2O | 235.9 Pa | 8.28 W | 12 VDC | 50000 Hrs | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 28.3 CFM | 0.792 m³/min | 94.4 mm | CE CSA UL VDE | ||||
Delta Electronics | 97.2 mm | 5300 RPM | 2.45 A | 7 V | 12.6 VDC | 64 dB(A) | Ball | Plastic | 29.4 W | 12 VDC | 50000 Hrs | 3 Wire Leads | Locked Rotor Protection Speed Sensor (Tach) | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 46 CFM | 1.29 mł/min | 94.4 mm | CE CSA UL VDE | ||||||
Delta Electronics | 2700 RPM | 370 mA | 3.5 VDC | 13.2 VDC | 49.5 dB | Ball | Plastic | 0.585 in H2O | 145.7 Pa | 4.4 W | 12 VDC | 50000 Hrs | 3 Wire Leads | Locked Rotor Sensor | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 23.2 CFM | 0.65 m³/min | CE CSA UL VDE | IP55 - Dust Protected Water Resistant | |||||
Delta Electronics | Rectangular/Rounded | 94.3 mm | 96.6 mm | 7500 RPM | 5 A | 10.8 VDC | 12.6 VDC | Ball | Plastic | 6.903 in H2O | 1719.5 Pa | 60 W | 12 VDC | 50000 Hrs | 4 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | 70 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 32.9 mm | 56.1 CFM | 1.57 mł/min | |||||
Delta Electronics | 97.2 mm | 4500 RPM | 1.5 A | 7 V | 13.2 VDC | 60 dB(A) | Ball | Plastic | 1.952 in H2O | 486.2 Pa | 18 W | 12 VDC | 50000 Hrs | 3 Wire Leads | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 38 CFM | 1.06 mł/min | 94.4 mm | CE CSA UL VDE | ||||
Delta Electronics | 2700 RPM | 370 mA | 3.5 VDC | 13.2 VDC | 49.5 dB | Ball | Plastic | 0.585 in H2O | 145.7 Pa | 4.4 W | 12 VDC | 50000 Hrs | 3 Wire Leads | Locked Rotor Sensor | 60 °C | 60 °C | -10 °C | -10 °C | Plastic | Blower | 180.08 g | 0.397 lb | 33 mm | 23.2 CFM | 0.65 m³/min | CE CSA UL VDE |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.13 | |
| 10 | $ 24.70 | |||
| 25 | $ 22.82 | |||
| 50 | $ 21.49 | |||
| 100 | $ 20.23 | |||
| 250 | $ 18.68 | |||
| 500 | $ 17.58 | |||
Description
General part information
BFB1012 Series
Fan Blower 12VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 28.3 CFM (0.792m³/min) 4 Wire Leads
