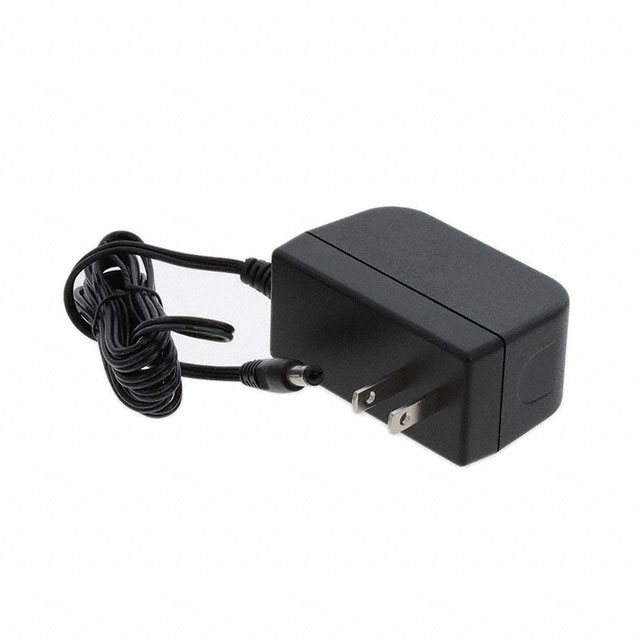

WR9HG1200CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 15V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 15V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HG1200CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, VCCI, cULus, UKRSepro, EAC, LPS, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.2 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	North America
Size / Dimension [x]	73.5 mm
Size / Dimension [x]	2.89 in
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.38 "
Size / Dimension [z]	46 mm
Size / Dimension [z]	1.81 "
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Voltage - Output	Input Type	Power (Watts)	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector	Output Connector [diameter]	Output Connector [z]	Approval Agency	Input Connector	Region Utilized	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Form	Applications	Polarization
GlobTek, Inc. WR9HG1200CCP-F(R6B)	15 VDC	Fixed Blade	18 W	1.2 A	75 mW	1.5 m	59 in	46 mm	73.5 mm	35 mm	1.38 "	2.89 in	1.81 "	CoC Tier 2 Level VI	40 °C	0 °C	Barrel Plug	2.1 mm 5.5 mm	11 mm	CB cULus EAC LPS PSE UKRSepro VCCI	NEMA 1-15P	North America	60950-1	90 VAC	264 VAC	Wall Mount (Class II)	ITE (Commercial)	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
