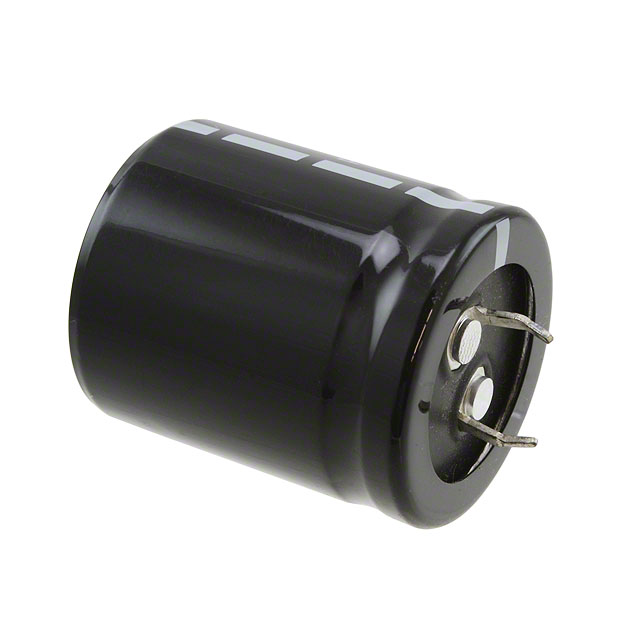

PEH536VCD3180M2

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 400V, 20% +TOL, 20% -TOL, 180UF, THROUGH HOLE MOUNT, ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 400V, 20% +TOL, 20% -TOL, 180UF, THROUGH HOLE MOUNT, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	PEH536VCD3180M2

Applications	General Purpose
Capacitance	180 çF
ESR (Equivalent Series Resistance)	480 mOhm
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	4600 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ Low Frequency	1 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	400 V

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lifetime @ Temp.	Package / Case	Applications	Tolerance	ESR (Equivalent Series Resistance)	Mounting Type	Ripple Current @ Low Frequency	Polarization
KEMET PEH536VCD3180M2	0.394 in	10 mm	-40 °C	105 ░C	37 mm	1.457 in	400 V	30 mm	1.181 inches	180 çF	4600 Hrs	Radial Can - Snap-In	General Purpose	20 %	480 mOhm	Through Hole	1 A	Polar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.97
Newark	Each	500	$ 4.04

General part information

180 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 480mOhm @ 100Hz 4600 Hrs @ 105°C
