B22B-PUDSS-1
ActiveJST Sales America Inc.

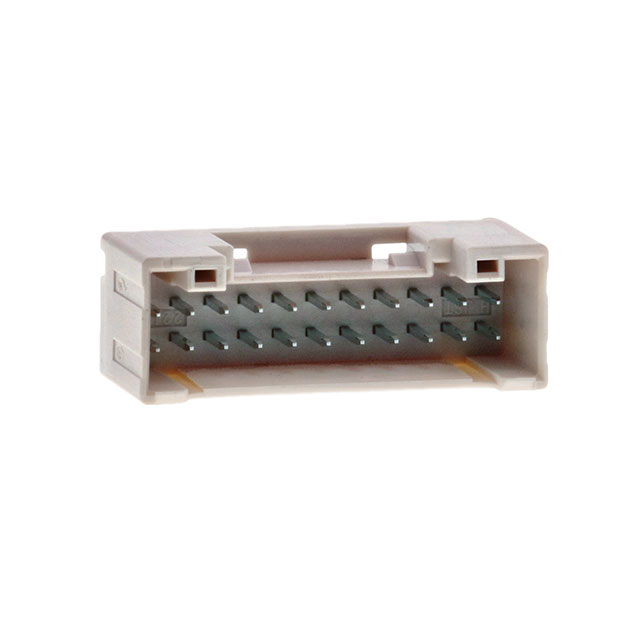

CONN HEADER VERT 22POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
B22B-PUDSS-1
ActiveJST Sales America Inc.
CONN HEADER VERT 22POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B22B-PUDSS-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mated Stacking Heights | 11 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.96 | |
| 10 | $ 0.81 | |||
| 80 | $ 0.73 | |||
| 440 | $ 0.59 | |||
| 1320 | $ 0.53 | |||
| 5280 | $ 0.46 | |||
| 10560 | $ 0.44 | |||
Description
General part information
B22B-PUD Series
Connector Header Through Hole 22 position 0.079" (2.00mm)
