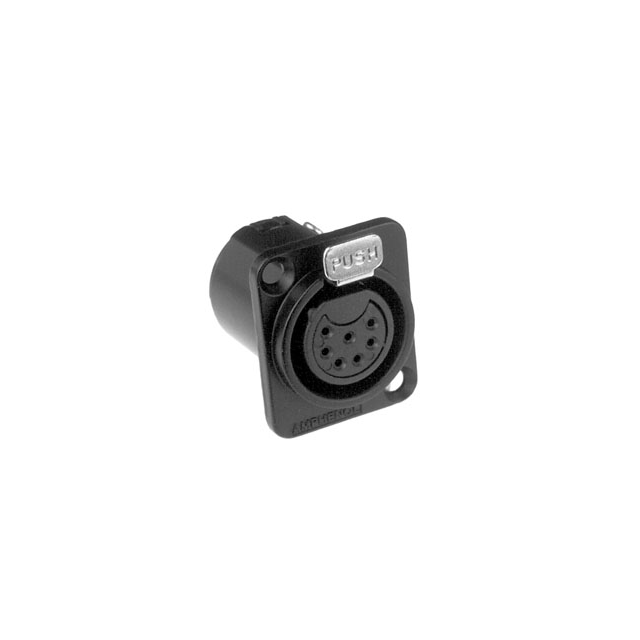

AC7FDZB BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 7 SKT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 7 SKT

Technical Specifications

Parameters and characteristics for this part

Specification	AC7FDZB BULK

Applications	Audio
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	7
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

Part	Ingress Protection	Shell Finish	Contact Finish - Mating	Contact Material	Shell Size - Insert	Shielding	Current Rating (Amps)	Connector Type	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Insert Material	Applications	Orientation	Mounting Feature	Primary Material	Color	Fastening Type
Amphenol Sine Systems Corp AC7FDZB BULK	IP40	Black	Gold	Brass	XLR	Unshielded	5 A	Female Sockets Plug	7	UL94 V-0	-25 °C	75 ░C	Zinc Die Cast	Glass Filled Nylon 6/6 Polyamide (PA66)	Audio	Keyed	Flange	Metal	Black	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 15.94

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
