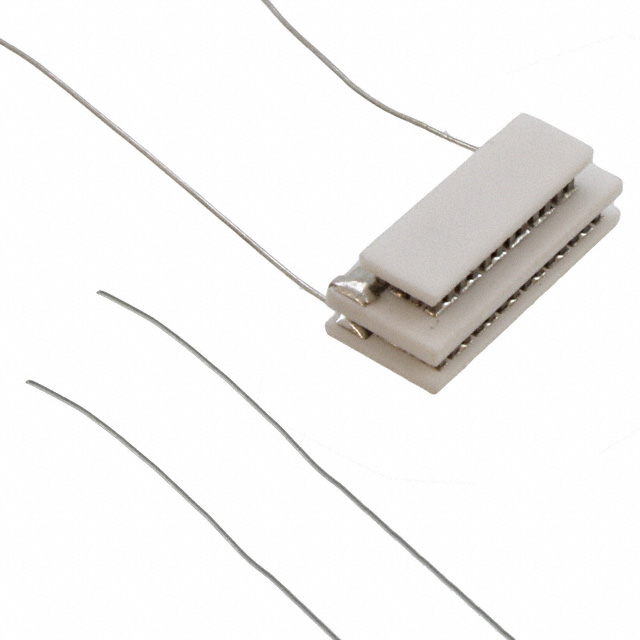

9380001-301

Active

Laird Thermal Systems, Inc.

PELTIR MS2,065,04,04,11,11,11,W4

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,065,04,04,11,11,11,W4

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Delta Tmax @ Th	Features	Operating Temperature	Qmax @ Th	Voltage - Max [Max]	Height [z]	Current - Max [Max]
Laird Thermal Systems, Inc. 9380001-301	14 mm	6 mm	2	82 °C	Lead Wires Non-Sealed	80 °C	1.1 W	5.5 V	4.6 mm	500 mA
Laird Thermal Systems, Inc. 9380001-304	14 mm	6 mm	2	82 °C	Lead Wires Non-Sealed	80 °C	1.1 W	5.5 V	4.78 mm	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 1.1W @ 25°C 0.5 A 80°C
