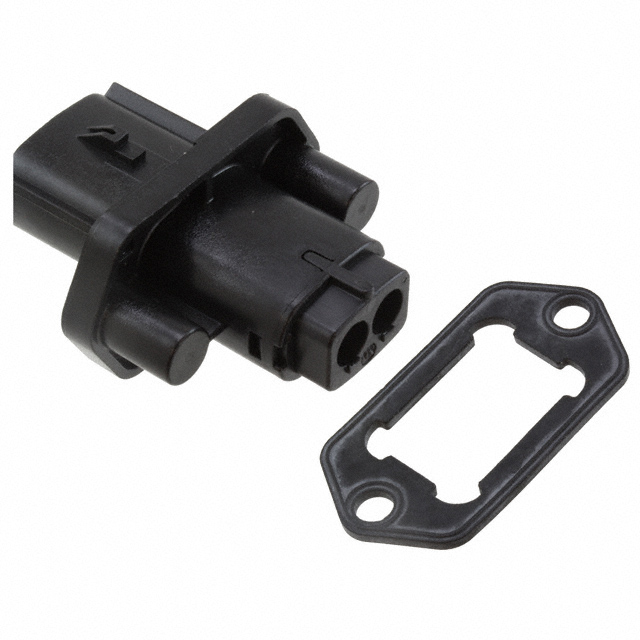

0194360213

Active

Molex

CONN PLUG HSG 2POS 7.62MM

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 2POS 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	0194360213

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Insulation Material	Polyester, Glass Filled, Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm

Part	Contact Termination	Note	Features	Pitch [x]	Pitch [x]	Insulation Material	Connector Type	Number of Positions	Fastening Type	Contact Type	Number of Rows	Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing
Molex 0194360212	Crimp	Contacts Not Included	Sealed	0.3 in	7.62 mm	Polybutylene Terephthalate (PBT) Polyester Glass Filled	Plug	2	Locking Ramp	Male Blade	1	Black	-40 °C	120 °C
Molex 0194360413	Crimp	Contacts Not Included		0.3 in	7.62 mm	Polybutylene Terephthalate (PBT) Polyester Glass Filled	Plug	4	Locking Ramp	Male Blade	2	Black	-40 °C	120 °C	0.383 in	9.73 mm
Molex 0194360213	Crimp	Contacts Not Included		0.3 in	7.62 mm	Polybutylene Terephthalate (PBT) Polyester Glass Filled	Plug	2	Locking Ramp	Male Blade	1	Black	-40 °C	120 °C
Molex 0194360412	Crimp	Contacts Not Included	Sealed	0.3 in	7.62 mm	Polybutylene Terephthalate (PBT) Polyester Glass Filled	Plug	4	Locking Ramp	Male Blade	2	Black	-40 °C	120 °C	0.383 in	9.73 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black 0.300" (7.62mm)
