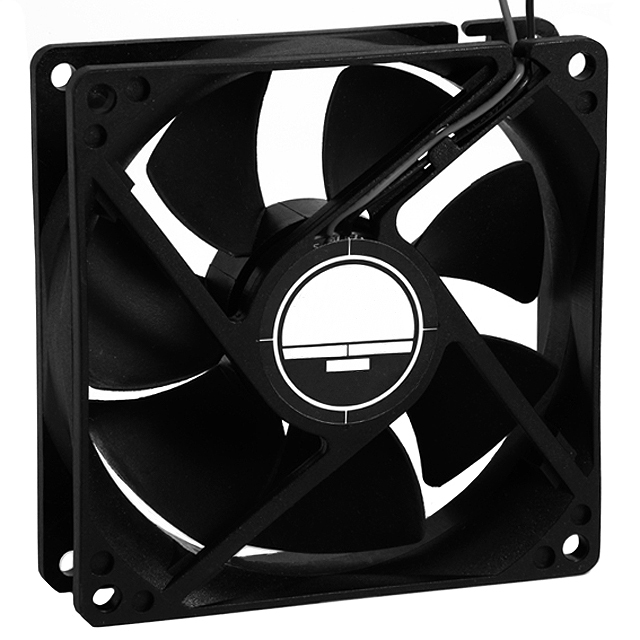

FAN AXIAL 92.5X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD9225-24HS01A

Active

Orion Fans

FAN AXIAL 92.5X25MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD9225-24HS01A

Approval Agency	cURus, TUV
Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension [x]	92.5 mm
Size / Dimension [z]	92.5 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Width [y]	25 mm

OD9225 Series

...

Part	Bearing Type	Material - Frame	Voltage - Rated	Approval Agency	Material - Blade	Ingress Protection	Fan Type	Features	Termination	Width [y]	Size / Dimension [x]	Size / Dimension [z]	RPM	Voltage Range [Max]	Voltage Range [Min]	Noise	Lifetime @ Temp.	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Current Rating (Amps)	Air Flow	Voltage - Rated [custom]	Power (Watts)
Orion Fans OD9225-24LBIP5502A	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	IP55 - Dust Protected Water Resistant	Tubeaxial	Alarm Sensor	3 Wire Leads	25 mm	92.5 mm	92.5 mm
Orion Fans OD9225-12HBIP5502A	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	IP55 - Dust Protected Water Resistant	Tubeaxial	Alarm Sensor	3 Wire Leads	25 mm	92.5 mm	92.5 mm
Orion Fans OD9225-24HS01A	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	Speed Sensor (Tach)	3 Wire Leads	25 mm	92.5 mm	92.5 mm
Orion Fans OD9225-12LB	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial		2 Wire Leads	25 mm	92.5 mm	92.5 mm	2100 RPM	17 VDC	7 V	28 dB	60000 Hrs	17.4 Pa	0.07 in H2O	80 C	80 °C	-20 °C	-20 C	1.09 m³/min	39 CFM
Orion Fans OD9225-12LS02A	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	Locked Rotor Sensor	3 Wire Leads	25 mm	92.5 mm	92.5 mm
Orion Fans OD9225-24MB	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial		2 Wire Leads	25 mm	92.5 mm	92.5 mm	2400 RPM	28 VDC	12 VDC	31 dB(A)	60000 Hrs	22.4 Pa	0.09 in H2O	80 C	80 °C	-20 °C	-20 C	1.23 m³/min	44 CFM	0.09 A
Orion Fans OD9225-24MS01A	Sleeve	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	24 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	Speed Sensor (Tach)	3 Wire Leads	25 mm	92.5 mm	92.5 mm
Orion Fans OD9225-48HB	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial		2 Wire Leads	25 mm	92.5 mm	92.5 mm	2800 RPM	56 VDC	32 VDC	33 dB(A)	60000 Hrs	59.8 Pa	0.24 in H2O	80 C	80 °C	-20 °C	-20 C	50 CFM		0.09 A	1.4 m³/min	48 VDC
Orion Fans OD9225-12HHB	Ball		12 VDC	cURus TUV	Polybutylene Terephthalate (PBT)		Tubeaxial		2 Wire Leads	25 mm			3575 RPM	13.8 VDC	8 VDC	43 dB	70000 Hrs	67.3 Pa	0.27 in H2O	65 °C	65 °C	-20 °C	-20 C	1.84 m³/min	65.7 CFM	0.29 A			3 W
Orion Fans OD9225-12LLB5	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	cURus TUV	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	PWM Control	3 Wire Leads	25 mm	92.5 mm	92.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 9.38

Description

General part information

OD9225 Series

Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Sleeve 3 Wire Leads
