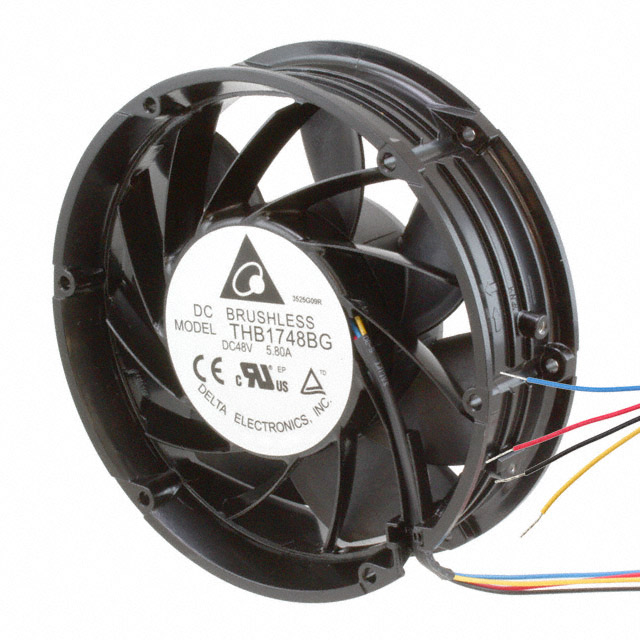

THB1748BG
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM
Deep-Dive with AI
Search across all available documentation for this part.
THB1748BG
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | THB1748BG |
|---|---|
| Air Flow | 607 CFM |
| Air Flow | 17 m³/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 3.5 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 75 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 168 W |
| RPM | 8000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 172 mm |
| Static Pressure | 1030.3 Pa |
| Static Pressure | 4.136 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 56 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 952.5 g |
| Weight | 2.1 lb |
| Width [y] | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 193.47 | |
| 16 | $ 165.16 | |||
| 32 | $ 151.00 | |||
| 56 | $ 132.12 | |||
Description
General part information
THB1748 Series
Fan Tubeaxial 48VDC Round - 172mm Dia Ball 607.0 CFM (17.00m³/min) 4 Wire Leads
