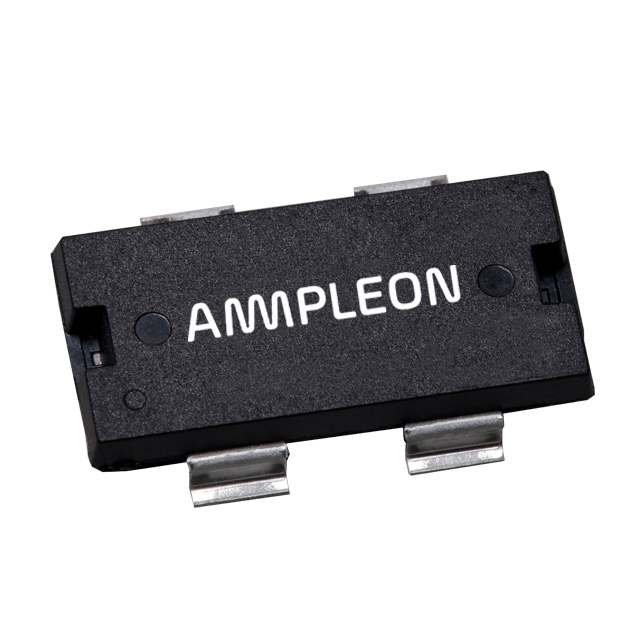

BLP8G10S-45PGY

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 4HSOP

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 4HSOP

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Max]	Frequency [Min]	Power - Output	Current - Test	Voltage - Rated	Voltage - Test	Gain	Configuration	Supplier Device Package	Mounting Type	Package / Case	Package / Case [y]	Package / Case [y]	Frequency
Ampleon USA Inc. BLP8G10S-45PGY	957.5 MHz	952.5 MHz	2.5 W	224 mA	65 V	28 V	20.8 dB	Common Source Dual	4-HSOP	Surface Mount	4-BESOP	4.4 mm	0.173 in
Ampleon USA Inc. BLP8G21S-160PVY	1.92 GHz	1.88 GHz	20 W	600 mA	65 V	28 V	17.5 dBi	Common Source Dual	6-HSOPF	Surface Mount	SOT-1221-1
Ampleon USA Inc. BLP8G05S-200Y			210 W	2 mA	65 V	28 V	21 dB	Common Source Dual	4-HSOPF	Surface Mount	SOT-1138-2			440 MHz
Ampleon USA Inc. BLP8G27-10Z			2 W	110 mA	65 V	28 V	17 dBi	Common Source Dual	16-HVSON (6x4)	Surface Mount	16-VDFN Exposed Pad			2.14 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 224 mA 952.5MHz ~ 957.5MHz 20.8dB 2.5W 4-HSOP
