3360-1-14-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.

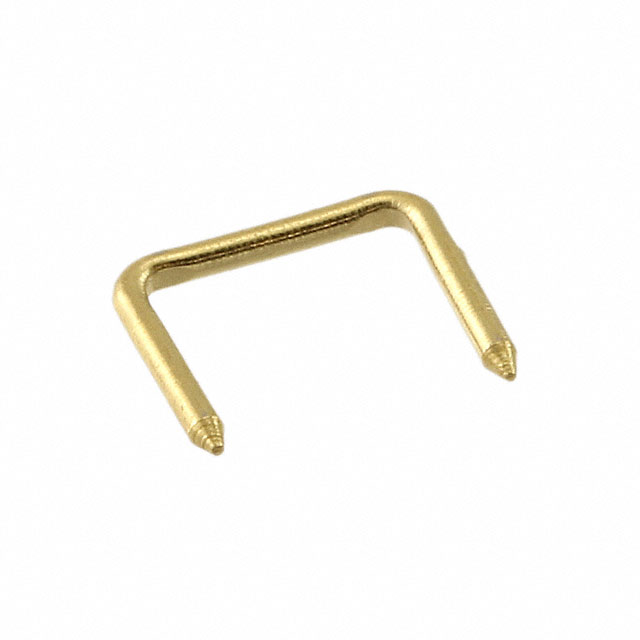

CIRCUIT PIN JUMPER .025"D .200"L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3360-1-14-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CIRCUIT PIN JUMPER .025"D .200"L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3360-1-14-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Gender | Male Pins |
| Height [z] | 5.08 mm |
| Height [z] | 0.2 in |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Type | Non-Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.60 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.39 | |||
| 3000 | $ 0.35 | |||
Description
General part information
3360-1 Series
2 (1 x 2) Position Shunt Connector Non-Insulated 0.200" (5.08mm) Gold
