51K507-802N5

Active

Rosenberger

CONN BNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	51K507-802N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms

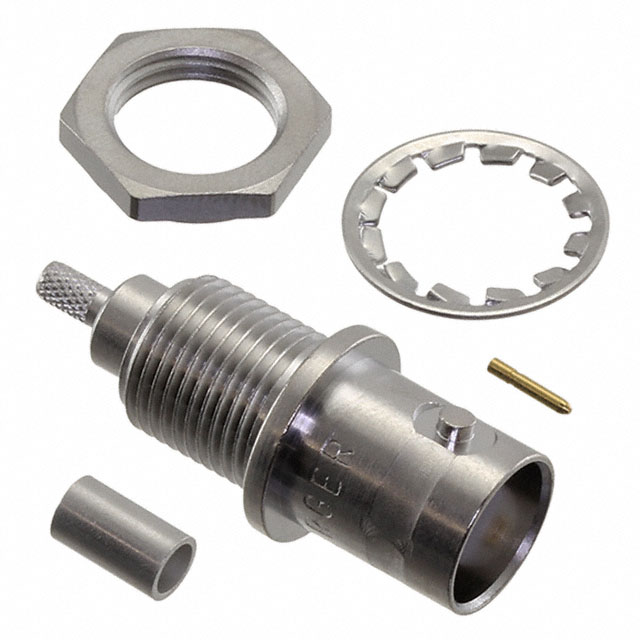

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Contact Termination	Frequency - Max [Max]	Shield Termination	Housing Color	Fastening Type	Body Finish	Impedance	Center Contact Plating	Cable Group	Mounting Feature	Dielectric Material	Body Material	Number of Ports	Connector Style	Connector Type	Voltage Rating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Includes
Rosenberger 51K507-803N5	Crimp	10 GHz	Crimp	Silver	Bayonet Lock	White Bronze	50 Ohms	Gold	RG-316	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	Brass	1	BNC	Female Socket Jack	400 V	Beryllium Copper	155 °C	-55 °C	500
Rosenberger 51K507-802N5	Crimp	10 GHz	Crimp	Silver	Bayonet Lock	White Bronze	50 Ohms	Gold	188A 316 RG-174A	Bulkhead - Rear Side Nut	Polytetrafluoroethylene (PTFE)	Brass	1	BNC	Female Socket Jack	400 V	Beryllium Copper	155 °C	-55 °C	500	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
