19307240729

Active

HARTING Technology Group

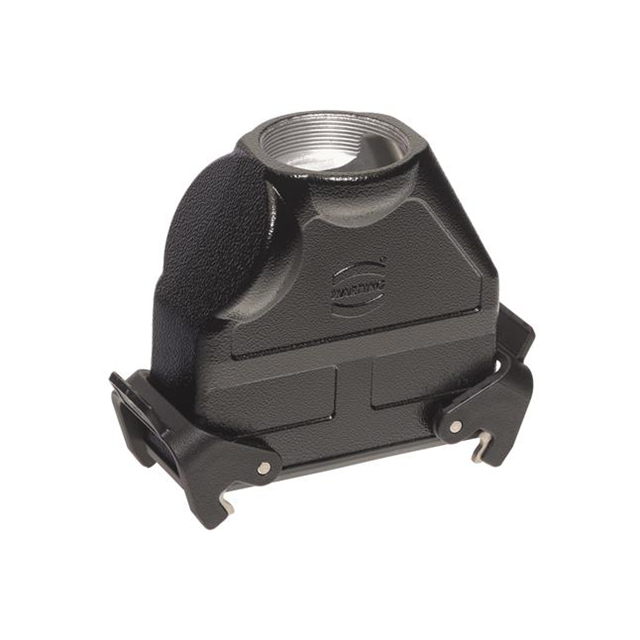

24B HOOD CABLE TO CABLE, DOUBLE LEVER, EXTRA HIGH CONSTRUCTION, M50 - BLACK

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HOOD CABLE TO CABLE, DOUBLE LEVER, EXTRA HIGH CONSTRUCTION, M50 - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19307240729

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	112 mm
Size / Dimension [z]	4.409 in
Style	Bottom Entry
Thread Size	M50

Part	Size	Housing Finish	Housing Color	Ingress Protection	Housing Material	Thread Size	Features	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style
HARTING Technology Group 19307240729	24 B	Powder Coated	Black	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M50	Cable to Cable	Locking Clip (2) on Hood Top	43 mm	112 mm	1.693 in	4.724 "	4.409 in	120 mm	125 °C	-40 °C	Hood - Coupling	Bottom Entry
HARTING Technology Group 19307240737	24 B	Powder Coated	Black	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M32	Cable to Cable	Locking Clip (2) on Hood Top	43 mm	78.4 mm	1.693 in	4.724 "	3.087 "	120 mm	125 °C	-40 °C	Hood - Coupling	Bottom Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 120.89
Newark	Each	50	$ 129.24
		100	$ 122.40

General part information

Hood - Coupling Connector Bottom Entry M50 24B IP65 - Dust Tight, Water Resistant
