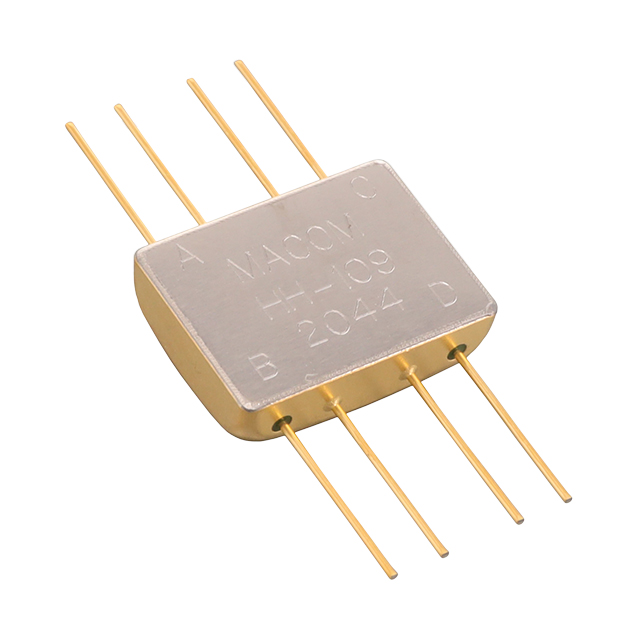

HH-109-PIN
ActiveMACOM Technology Solutions
HYBRID,BROAD-BAND,180DEG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HH-109-PIN
ActiveMACOM Technology Solutions
HYBRID,BROAD-BAND,180DEG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HH-109-PIN |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 200 MHz |
| Frequency [Min] | 5 MHz |
| Insertion Loss | 1.4 dB |
| Isolation | 25 dB |
| Package / Case | FP-2 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | FP-2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 10 | $ 162.85 | |
Description
General part information
HH-109 Series
RF Directional Coupler General Purpose 5MHz ~ 200MHz 500mW FP-2
