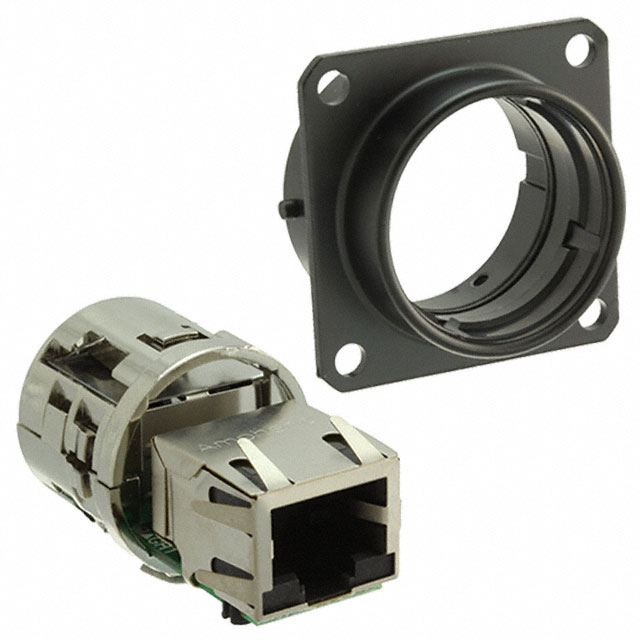

RJF21ZN

Active

Amphenol Socapex

CONN MOD JACK 8P8C VERT UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJ Field Series Brochure Datasheet

RJF21ZN

Active

Amphenol Socapex

CONN MOD JACK 8P8C VERT UNSHLD

Deep-Dive with AI

DocumentsRJ Field Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJF21ZN

Connector Type	Jack
Features	Circular Bayonet Coupling
Ingress Protection	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Square Flange
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Wire Leads

RJF21 Series

Part	Convert From (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Convert To (Adapter End)	Ratings	Type	Features	Mounting Type	Termination	Number of Rows	Tab Direction	Connector Type	Number of Ports	Number of Positions/Contacts	LED Color	Orientation	Ingress Protection	Shell Material, Finish
Amphenol Socapex RJF21RAB	Jack 8p8c (RJ45)	85 °C	-40 °C	Shielded	8p8c (RJ45) Jack	Cat5e	Coupler	Circular Bayonet Coupling	Panel Mount Right Angle Square Flange
Amphenol Socapex RJF21ZN		85 °C	-40 °C	Unshielded		Cat5e		Circular Bayonet Coupling	Panel Mount Square Flange	Wire Leads	1	User Selectable	Jack	1	8p8c (RJ45 Ethernet)	Does Not Contain LED	Straight	IP68 - Dust Tight Waterproof
Amphenol Socapex RJF21RAN	Jack 8p8c (RJ45)	85 °C	-40 °C	Shielded	8p8c (RJ45) Jack	Cat5e	Coupler	Circular Bayonet Coupling	Panel Mount Right Angle Square Flange										Nickel Plating
Amphenol Socapex RJF21N	Jack 8p8c (RJ45)	85 °C	-40 °C	Unshielded	8p8c (RJ45) Jack	Cat5e	Coupler	Circular Bayonet Coupling	Panel Mount Square Flange									IP67 - Dust Tight Waterproof	Metal Nickel Plated
Amphenol Socapex RJF21G	Jack 8p8c (RJ45)	85 °C	-40 °C	Unshielded	8p8c (RJ45) Jack	Cat5e	Coupler	Circular Bayonet Coupling	Panel Mount Square Flange									IP67 - Dust Tight Waterproof	Aluminum Olive Drab Cadmium Plated
Amphenol Socapex RJF21ZNSCC		85 °C	-40 °C	Unshielded		Cat5e		Circular Bayonet Coupling	Panel Mount Square Flange	PC Board Solder	1	User Selectable	Jack	1	8p8c (RJ45 Ethernet)	Does Not Contain LED	Straight	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF21BSCC	Jack 8p8c (RJ45)	85 °C	-40 °C	Shielded	8p8c (RJ45) Jack	Cat5e	Coupler	Circular Bayonet Coupling Self-Closing Cap	Panel Mount Square Flange										Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.26
		10	$ 69.06
		25	$ 66.40
		50	$ 64.19
		100	$ 60.65

Description

General part information

RJF21 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e

Documents

Technical documentation and resources

RJ Field Series Brochure

Datasheet
