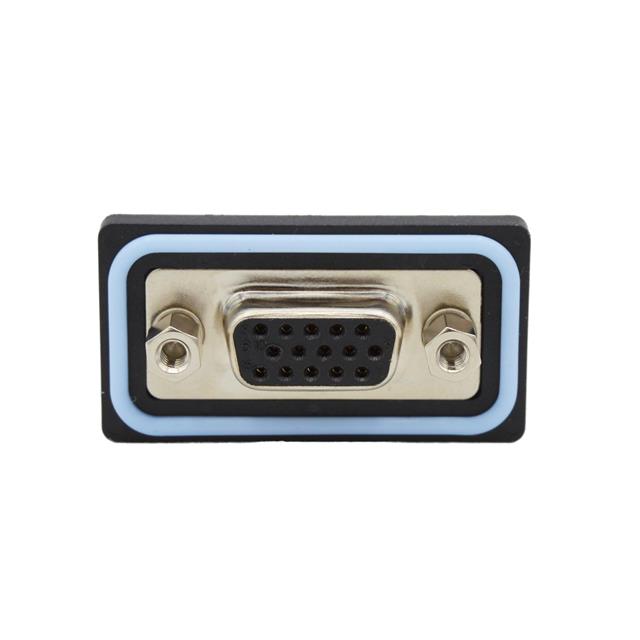

HDF-S15-203L011
ActiveMH Connectors
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDF-S15-203L011
ActiveMH Connectors
CONN D-SUB HD RCPT 15POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDF-S15-203L011 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.71 | |
| 10 | $ 13.92 | |||
| 25 | $ 13.39 | |||
| 63 | $ 12.85 | |||
| 126 | $ 12.14 | |||
| 252 | $ 11.07 | |||
| 441 | $ 10.35 | |||
| 945 | $ 9.50 | |||
Description
General part information
HDF-S15 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
