CT2176-10-0

Obsolete

Cal Test Electronics

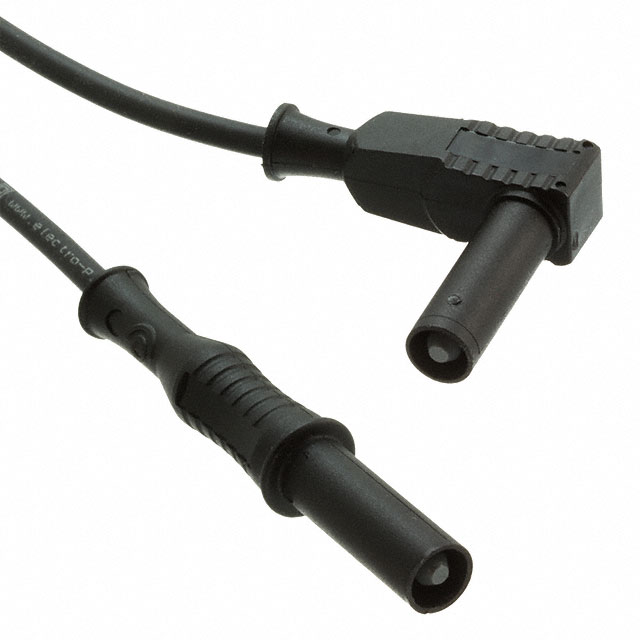

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2176-10-0

Obsolete

Cal Test Electronics

TEST LEAD BANANA TO BANANA 4"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT2176-10-0

1st Connector	Sheathed, Single, Banana Plug
2nd Connector	Banana Plug, Single, Sheathed, Right Angle
Cable Length [x]	4 in
Cable Length [x]	101.6 mm
Configuration	Banana to Banana
Contents	1 Lead, Black
Current Rating (Amps)	12 A
Material - Insulation	Silicone
Ratings	CAT III 1000V, CAT IV 600V
Stacking Method	Non Stackable
Type	Patch Cord
Voltage - Rated	1000 V, 600 VDC
Wire Gauge	18 AWG

CT2176 Series

Part	Cable Length [x]	Cable Length [x]	Current Rating (Amps)	Stacking Method	Voltage - Rated	Ratings	Wire Gauge	Material - Insulation	Configuration	Contents	2nd Connector	1st Connector	Type	Cable Length	Cable Length
Cal Test Electronics CT2176-10-4	4 in	101.6 mm	12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead Yellow	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord
Cal Test Electronics CT2176-10-6	4 in	101.6 mm	12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead Blue	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord
Cal Test Electronics CT2176-25-0			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead Black	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	250 mm	9.8 in
Cal Test Electronics CT2176-50-5			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana		Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	50 cm	19.7 in
Cal Test Electronics CT2176-25-9			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead White	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	250 mm	9.8 in
Cal Test Electronics CT2176-200-6			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead Blue	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	2 m	78.7 in
Cal Test Electronics CT2176-10-0	4 in	101.6 mm	12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead Black	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord
Cal Test Electronics CT2176-100-5			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana		Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	100 cm	39.4 in
Cal Test Electronics CT2176-150-9			12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead White	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord	1.5 m	59.1 in
Cal Test Electronics CT2176-10-9	4 in	101.6 mm	12 A	Non Stackable	600 VDC 1000 V	CAT III 1000V CAT IV 600V	18 AWG	Silicone	Banana to Banana	1 Lead White	Banana Plug Single Sheathed Right Angle	Banana Plug Sheathed Single	Patch Cord

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CT2176 Series

4.0" (101.60mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed, Right Angle Patch Cord 600V, 1000V
