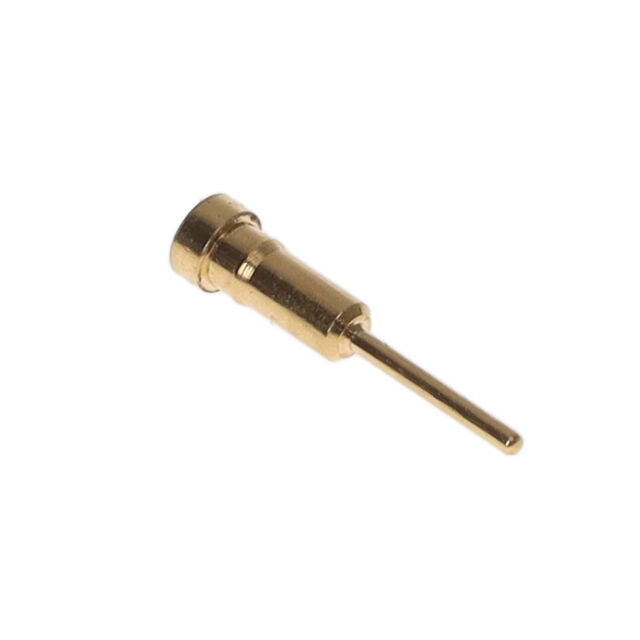

0134-0-15-15-32-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0134-0-15-15-32-27-04-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Length - Overall [x]	8.5 mm
Length - Overall [x]	0.335 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	3.81 mm
Socket Depth	0.15 in
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit

0134-0 Series

Part	Tail Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0134-0-15-15-32-14-04-0	Standard Tail	Gold	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.51 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-80-30-09-04-0	Standard Tail				3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.51 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-15-30-14-04-0	Standard Tail	Gold	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.51 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-80-30-84-04-0	Standard Tail	Tin	100 µin	2.54 µm	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.51 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-01-30-14-04-0	Standard Tail	Gold	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.5 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-15-32-27-04-0	Standard Tail	Gold	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.5 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-80-32-27-04-0	Standard Tail	Gold	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.51 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-01-32-14-04-0	Standard Tail	Gold	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.5 mm	0.335 in
Mill-Max Manufacturing Corp. 0134-0-15-01-32-27-04-0	Standard Tail	Gold	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.02 in	0.51 mm	Press-Fit	1.83 mm	0.072 in	0.025 "	0.64 mm	0.015 "	0.38 mm	Beryllium Copper	-55 °C	125 °C	0.057 "	1.45 mm	8.5 mm	0.335 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.71
		25	$ 0.68
		50	$ 0.66
		100	$ 0.64
		250	$ 0.58
		500	$ 0.52
		1000	$ 0.46
		3000	$ 0.42

Description

General part information

0134-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
