G-NSDOG2-002
ActiveTE Connectivity Measurement Specialties

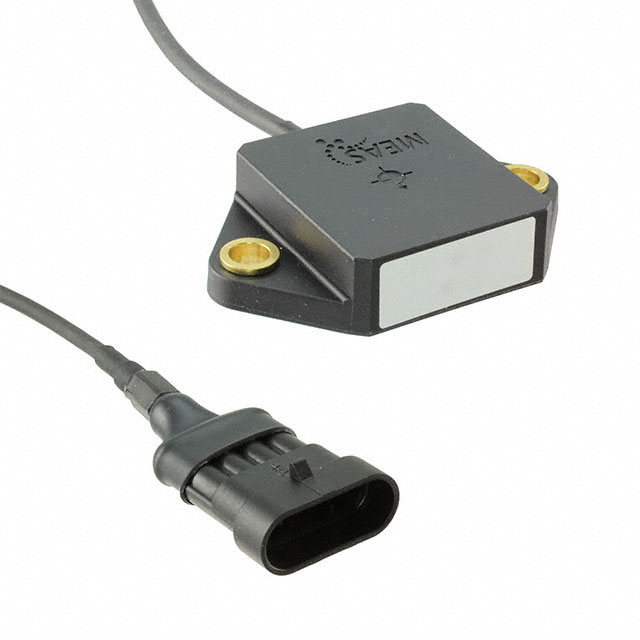

SENSOR INCLINOMETER 45DEG MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G-NSDOG2-002
ActiveTE Connectivity Measurement Specialties
SENSOR INCLINOMETER 45DEG MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G-NSDOG2-002 |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Bandwidth | 100 Hz |
| Interface | Analog |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Voltage Rating [Max] | 30 V |
| Voltage Rating [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 238.75 | |
| 5 | $ 201.41 | |||
| 10 | $ 187.19 | |||
| 25 | $ 169.94 | |||
| 50 | $ 163.47 | |||
Description
General part information
G-NSDOG2 Series
Sensor Inclinometer ±45° X, Y Axis 100Hz Bandwidth Module
