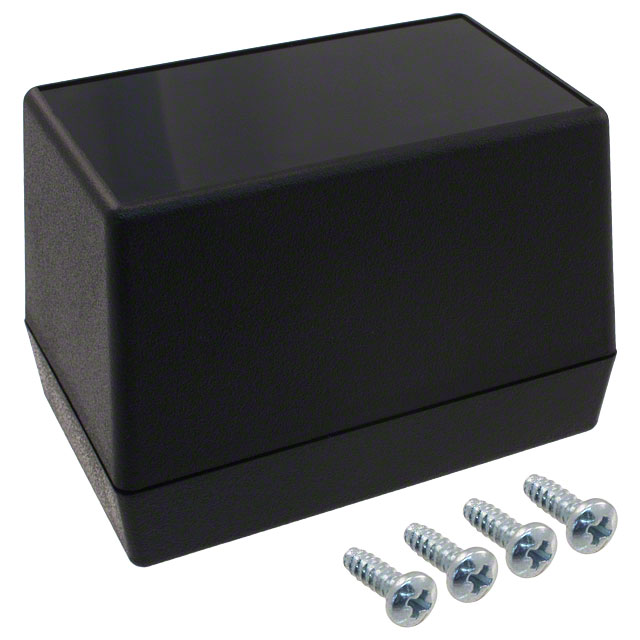

113I,BK

Active

Serpac

BOX ABS BLACK 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	113I,BK

Area (L x W) [custom]	52.3 cm˛
Area (L x W) [custom]	8.1 in˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	78.02 g
Weight	0.172 lb

Part	Material	Thickness	Thickness	Container Type	Height [z]	Height [z]	Features	Material Flammability Rating	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Design	Ratings	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Serpac 113I,AL	Plastic ABS	2.54 mm	0.1 in	Box	63.5 mm	2.5 in	PCB Supports	UL94 HB	78.02 g	0.172 lb	91.44 mm	57.15 mm	3.6 in	2.25 in	Almond	Hand Held Split Sides	IP40 NEMA 1	52.3 cm²	8.1 in²
Serpac 113I,BK	Plastic ABS	2.54 mm	0.1 in	Box	63.5 mm	2.5 in	PCB Supports	UL94 HB	78.02 g	0.172 lb	91.44 mm	57.15 mm	3.6 in	2.25 in	Black	Hand Held Split Sides	IP40 NEMA 1			52.3 cm˛	8.1 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 2.500" (63.50mm)
