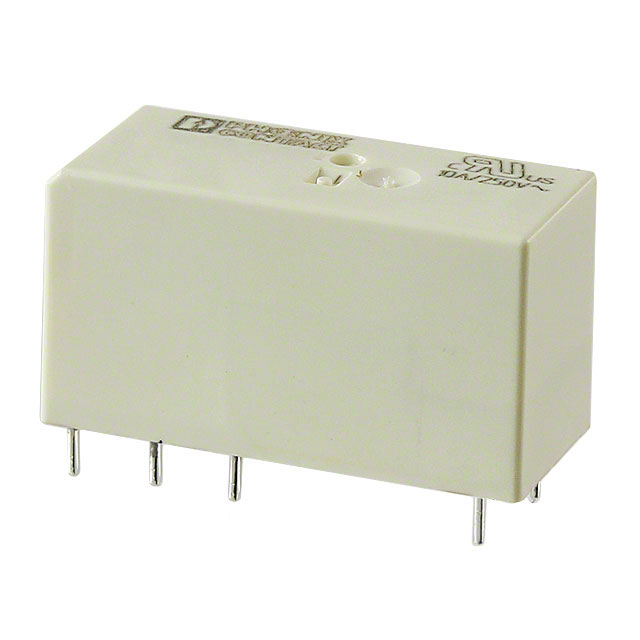

2961202

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 110V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 110V

Technical Specifications

Parameters and characteristics for this part

General Purpose Relays REL-MR- 12DC/21

Part	Mounting Type	Termination Style	Coil Resistance	Operate Time	Contact Material	Coil Current	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Rating (Current)	Contact Form	Coil Type	Release Time	Relay Type	Approval Agency	Load - Max Switching
Phoenix Contact 2961257	Through Hole	PC Pin	360 Ohms	7 ms	Silver Nickel (AgNi)	33 mA	12 VDC	85 °C	-40 °C	250 VAC 250 VDC	8 A	DPDT (2 Form C)	Non Latching	3 ms	General Purpose	cULus EAC UR
Phoenix Contact 2961202	Through Hole	PC Pin	26.6 kOhms	7 ms	Silver Nickel (AgNi)	4.1 mA	110 VDC	85 °C	-40 °C	250 VAC 250 VDC	8 A	DPDT (2 Form C)	Non Latching	3 ms	General Purpose	cULus EAC UR
Phoenix Contact 2961215	Through Hole	PC Pin	1440 Ohms	7 ms	Gold (Au) Silver Nickel (AgNi)	17 mA	24 VDC	85 °C	-40 °C	250 VAC	8 A	DPDT (2 Form C)	Non Latching	3 ms	General Purpose	cULus EAC UR	2000 VA
Phoenix Contact 2961286	Through Hole	PC Pin	7.34 kOhms	7 ms	Gold (Au) Silver Nickel (AgNi)	8.2 mA	60 VDC	85 °C	-40 °C	250 VAC	8 A	DPDT (2 Form C)	Non Latching	3 ms	General Purpose	cULus UR VDE	2000 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.11

General part information

General Purpose Relays REL-MR- 12DC/21
