03KEEG3EAM

Active

Delta Electronics

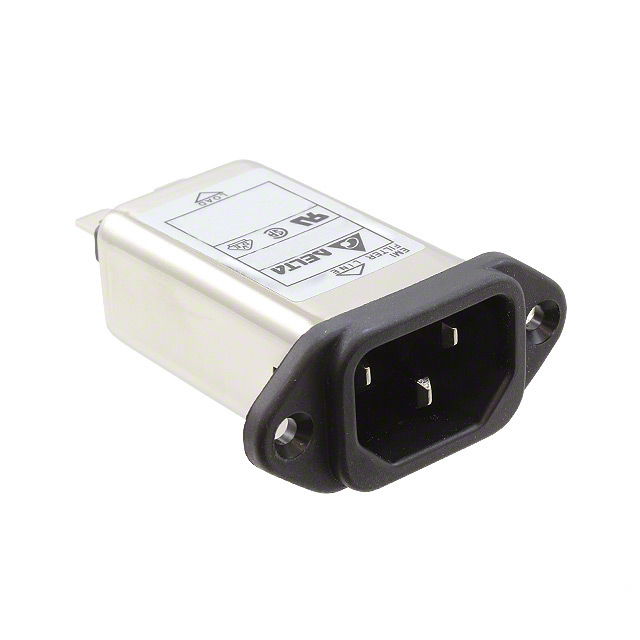

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	03KEEG3EAM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A
Current Rating - Filter	3 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Connector Type	Mounting Type	Connector Style	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Accomodates a Fuse	Current Rating - Filter	Termination	Filter Type	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Delta Electronics 03KEEG3EAM	Male Blades Receptacle	Flange Panel Mount	IEC 320-C14	3 A	115 VAC	250 VAC		3 A	Quick Connect	Filtered (EMI RFI) - Commercial Medical	CSA UL VDE	21.6 mm	28.45 mm
Delta Electronics 03KEEG3SA	Male Blades Receptacle	Flange Panel Mount	IEC 320-C14	3 A	115 VAC	250 VAC		3 A	Quick Connect	Filtered (EMI RFI) - Commercial	CSA UL VDE	21.6 mm	28.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 6.96

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange

Technical documentation and resources
